LY4-M16-8MP-ICR M16 4mm 4K 8MP F1.6 1/1.8" CCTV Camera Lens with IR-CUT filters switch

Empty

Total: $0.00

Checkout

Hupuu Electronics

LF3.6-M12-4K 1/1.8" 4K 3.6mm F2.2 M12 Mount Camera Lens

LF5-CS-12MP-F2-IR 1/1.8" 12MP 4K 5mm CS Mount Camera Lens for IMX178 IMX185 IMX226

LY4-M16-8MP-ICR M16 4mm 4K 8MP F1.6 1/1.8" CCTV Camera Lens with IR-CUT filters switch

SKU:

LY4-M16-8MP-ICR

Category: 8MP Lens

$15.26

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $12.87 - $15.26

Effective Pixels: 8MP

Aperture: F2.0

Bottom Group

Description

Model			LY4-M16-8MP-ICR
Parameter of Lens
Pixel			8MP
Image Format			1/1.8″ 9.2mm(Max)
Focal Length			4mm±5%
Aperture			F1.6±5%
Mount			M16×0.5
Field Angle D×H×V(°) 16:9		" °	1/1.8	1/2.5
		D	101.5	80.3
		H	87	69.4
		V	47.3	49.6
TV Distortion (4:3)			-12.2%	-7.8%
CRA			14.7°	11°
Relative illumination			48%	61%
M.O.D			0.2m
Dimension			Φ14×17.19mm
Weight			9g
Flange Back Focal Length			6.08mm (in air)
TTL			29.86mm (in air)
Lens Structure			5G3P
Operation	Iris		FIX
	Focus		/
	Zoom		/
Operating temperature			-20°C~+60°C
Storage temperature			-20°C~+80°C

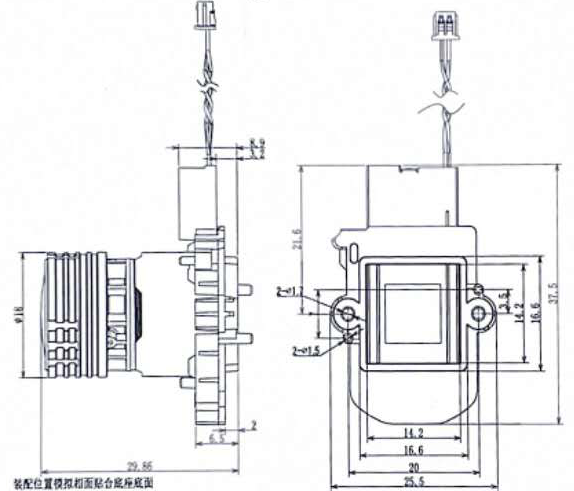

Size

Size tolerance(mm):	0-10±0.05	10-30±0.10		30-120±0.20
Angle tolerance			±2°

FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.
