LF3.6-M12-4K 1/1.8" 4K 3.6mm F2.2 M12 Mount Camera Lens

SKU:

LF3.6-M12-4K

Category: 1/1.8" Lens Monofocal Lens M12 3.6mm M12 8MP Lens 12MP Lens

$15.50

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $12.30 - $15.50

Effective Pixels: 8MP

Aperture: F2.3

Bottom Group

Description

Model			LF3.6-M12-4K
Parameter of Lens
Pixel			4K 8MP
Image Format			1/1.8" φ8.4mm
Focal Length			3.6mm
Aperture			F2.2
Mount			M12x0.5
Field Angle D×H×V(°)			1/1.8" 16:9
		D	140°
		H	120°
		V	78°
Optical Distortion			58.3%(Max)

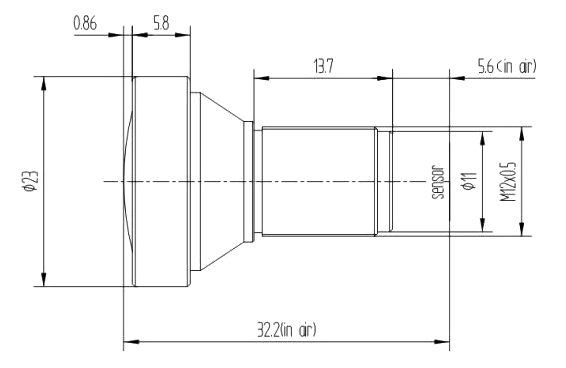

Dimension			Φ23x26.6mm
Flange Back Focal Length			/
Back Focal Length			6.1mm
MBF			5.6mm
Operation	Iris		FIX
	Focus		/
	Zoom		/
Focus Range			0.3m ~ ∞
Operating temperature			-30°C~+80°C
Size

Size tolerance(mm):	0-10±0.05	10-30±0.10		30-120±0.20
Angle tolerance			±2°

FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.
