LF8-M12-12MP-F1.8-IR 1/1.8" 12MP 8mm F1.8 M12 Mount Camera Lens

SKU:

LF8-M12-12MP-F1.8-IR

Category: Monofocal Lens M12 8mm M12 1/1.8" Lens 8MP Lens 12MP Lens 1/1.7" Lens

$19.52

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $17.31 - $19.52

Effective Pixels: 12MP

Aperture: F2.0

Bottom Group

Description

Model			LF8-M12-12MP-F1.8-IR
Parameter of Lens
Pixel			12MP
Image Format			1/1.8"
Focal Length			8mm
Aperture			F1.8
Mount			M12x0.5
Field Angle D×H×V(°)		" °	1/1.8		1/2.5	1/3
		D	69.5		50.7	43
		H	55.6		44.4	34.7
		V	40.3		32.6	26.4
Optical Distortion			-15.68%(Max)
M.O.D			0.3m

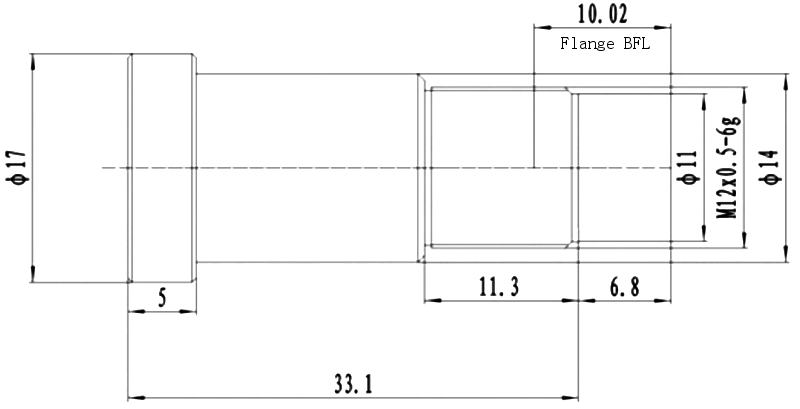

Dimension			Φ14x33.1mm
Weight			12g
Flange Back Focal Length			/
Back Focal Length			10.02mm
MBF			6.8mm
IR Correction			Yes
Operation	Iris		FIX
	Focus		/
	Zoom		/
Operating temperature			-30°C~+80°C
Size

Size tolerance(mm):	0-10±0.05	10-30±0.10		30-120±0.20
Angle tolerance			±2°

FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.

Shipping

Shipping fee table:

Quantity:

Ship to:

Remark:
For orders with a high total amount, please choose DHL, EMS other than Airmail, ePacket.
