LF8-CS-12MP-F1.8-IR 1/1.8" 12MP 4K 8mm CS Mount Camera Lens for IMX178 IMX185

SKU:

LF8-CS-12MP-F1.8-IR

Category: 1/1.8" Lens

$22.57

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $20.11 - $22.57

Effective Pixels: 12MP

Aperture: F1.8

Bottom Group

Description

Model					LF8-CS-12MP-F1.8-IR
Resolution					12 Megapixel
Image format					1/1.8"
Focal length					8mm
Aperture					F1.8
Mount					CS
Field Angle D×H×V(°)				" °	1/1.8		1/2.5		1/3
				D	69.5		50.7		43
				H	55.6		44.4		34.7
				V	40.3		32.6		26.4
Optical Distortion					15.68%(MAX)
M.O.D					0.3m

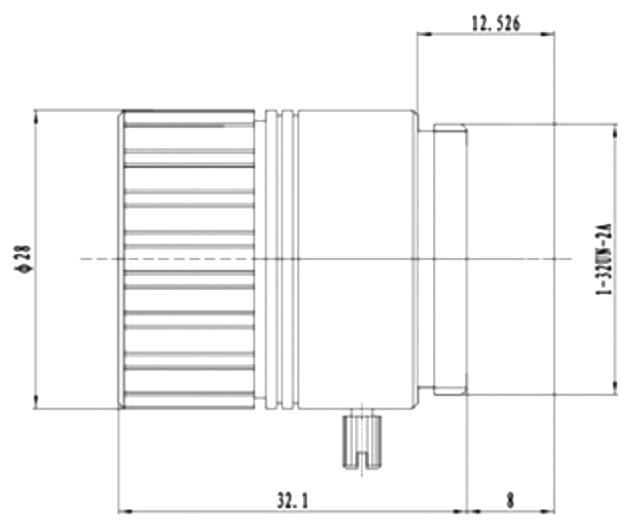

Dimension					Φ28×32.1mm
Weight					28±2g
Flange BFL					12.526mm
BFL					10.02mm
MBF					8.0mm
IR Correction					Yes
Operation				Iris			FIX
				Focus			/
				Zoom			/
Operating temperature							-20°C~+60°C
Size

Size tolerance(mm):			0-10±0.05			10-30±0.10			30-120±0.20
Angle tolerance					±2°
