LF5-CS-12MP-F2-IR 1/1.8" 12MP 4K 5mm CS Mount Camera Lens for IMX178 IMX185 IMX226

SKU:

LF5-CS-12MP-F2-IR

Category: 1/1.8" Lens 8MP Lens 12MP Lens 5mm CS 1/1.7" Lens

$17.70

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $15.70 - $17.70

Effective Pixels: 12MP

Aperture: F2.0

Bottom Group

Description

Model					LF5-CS-12MP-F2-IR
Resolution					12 Megapixel
Image format					1/1.8"
Focal length					5mm
Aperture					F2.0
Mount					CS
Field Angle D×H×V(°)				" °	1/1.8		1/2.5		1/3
				D	114.4		87		70.9
				H	87		68.6		55.5
				V	61.8		49.7		41.2
Optical Distortion					-43.7%(MAX)
M.O.D					0.3m

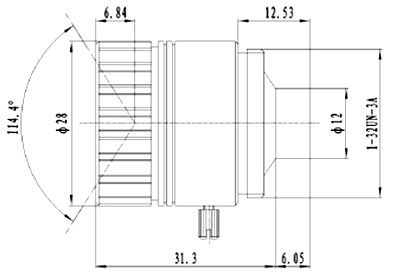

Dimension					Φ28×31.3mm
Weight					40.9±2g
Flange BFL					12.5mm
BFL					6.39mm
MBF					6.05mm
IR Correction					Yes
(Operation)				Iris			FIX
				Focus			/
				Zoom			/
Operating temperature							-20°C~+60°C
Size

Size tolerance(mm):			0-10±0.05			10-30±0.10			30-120±0.20
Angle tolerance					±2°
