3MP High Resolution Design,  Apply to 720P and 1080P Camera.

Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Applying to Traffic Monitoring, Toll Gate Capturing and General Monitoring

Model:					LF1140-C-8MP-F1.6-IR-CD
Parameter of Lens
Pixel					8MP
Image format					1/1.8″
Focal length					11-40mm
Aperture					F1.8
Mount					C
Field Angle D×H×V(°)				" °	1/1.8
					11mm	40mm
				D	48	14
				H	38	12
				V	11.2	8
Optical Distortion					-10.21%~-0.17%(1/1.8")
M.O.D.					0.3m

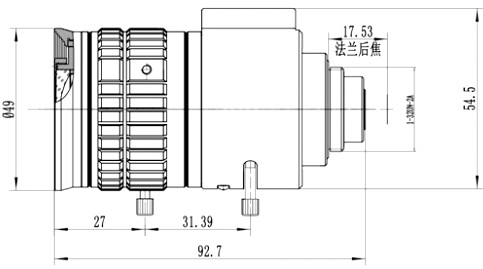

Dimension					Φ49x54.5x92.7mm
Weight					203g
Flange BFL					17.526mm
Back focal length					7.04mm
MBF					6.56mm
Operation		Iris			DC
		Focus			Manual
		Zoom			Manual
Operating temperature					-20°C~+60°C
Size
Size tolerance(mm):		0-10±0.05		10-30±0.10			30-120±0.20
Angle tolerance					±2°
