8MP High Resolution Design,  Apply to 4K Camera.

Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Applying to Traffic Monitoring, Toll Gate Capturing and General Monitoring

Model:					LF1150-CS-8MP-F1.4-IR-CD
Parameter of Lens
Pixel					8MP
Image format					1/1.7″
Focal length					11-50mm
Aperture					F1.4
Mount					CS
Field Angle D×H×V(°)				" °	1/1.7(4:3)		1/1.8(16:9)		1/2(4:3)
					Wide	Tele	Wide	Tele	Wide	Tele
				D	47	10.9	44.2	10.4	39.5	9.4
				H	36.9	8.8	38.1	9	31.2	7.5
				V	27.2	6.6	21	5.1	23.1	5.6
Optical Distortion					-10.7%~-0.07%(1/1.7")
M.O.D.					1.5m
Dimension					Φ50x92.5mm
Weight					203g
Flange BFL					12.5mm
Back focal length					8.26mm
MBF					6.95mm
Operation		Iris			DC
		Focus			Manual
		Zoom			Manual
Operating temperature					-20°C~+60°C

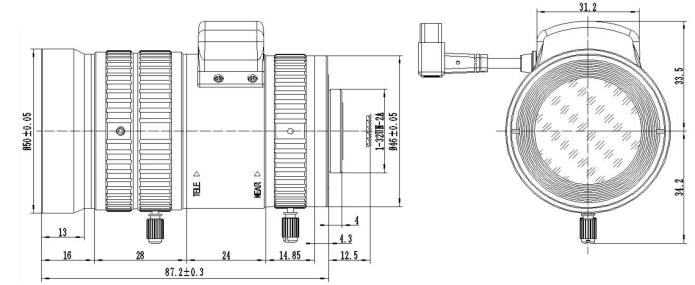

Size
Size tolerance(mm):		0-10±0.05		10-30±0.10			30-120±0.20
Angle tolerance					±2°
