LF8-M12-5MP-F2-IR

SKU:

LF8-M12-5MP-F2-IR

Category: Monofocal Lens M12 8mm M12 1/2.5" Lens 5MP Lens

$4.85

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $3.91 - $4.85

Effective Pixels: 5MP

Aperture: F2.0

Bottom Group

Description

Model					LF8-M12-5MP-F2-IR
Parameter of Lens
Pixel					5MP
Image Format					1/2.5″
Focal Length					8mm
Aperture					F2.0
Mount					M12×0.5
Field Angle D×H×V(°)				" °	1/2.5		1/3		1/4
				D	50		45		33.4
				H	40		36		26.7
				V	30		27		20
Optical Distortion					-7.70%		-6.10%		-3.30%
M.O.D					0.3m

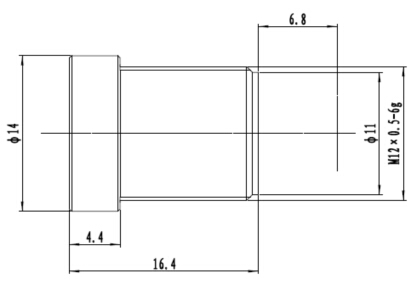

Dimension					Φ14×16.4mm
Weight					5g
Flange Back Focal Length					/
Back Focal Length					8.1mm
MBF					6.8mm
IR Correction					Yes
Operation		Iris			FIX
		Focus			/
		Zoom			/
Operating temperature					-20°C~+60°C
Size

Size tolerance(mm):		0-10±0.05		10-30±0.10		30-120±0.20
Angle tolerance					±2°
