3MP High Resolution Design,  Apply to 720P and 1080P Camera.

Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Model:				LF8-M12-3MP-F2.4-IR
Parameter of Lens
Pixel				3MP
Image Format				1/2.5″
Focal Length				8mm
Aperture				F2.4
Mount				M12x0.5
Field Angle DxHxV(°)		1/2.5"		60°x45.6°x33°
		1/3"		46.8°x37.4°x28.1°
M.O.D.				0.3m
Dimension				Φ14x17.2mm
Weight				5g
Back Focal Length				5.7mm
Operation		Iris		FIX
		Focus		/
		Zoom		/
Operating temperature				-20°C~+60°C

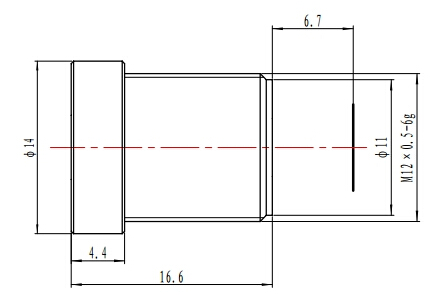

Size
Size tolerance(mm):		0-10±0.05		10-30±0.10	30-120±0.20
Angle tolerance			±2°
