3.6mm 5MP 1/2.5" Mount M12 x 0.5 Aperture F2.0 CCTV Fixed Lens For CCTV Camera

LF4-M12-F1-C Night Vision F1.0 4mm 5MP 1/2.7" M12 Mount Fixed Security CCTV Camera Lens

3.6mm 5MP 1/2.5" Mount M12 x 0.5 Aperture F2.0 CCTV Fixed Lens For CCTV Camera

SKU:

LF3.6-M12-5MP

Category: 1/2.7" Lens Monofocal Lens M12 3.6mm M12 5MP Lens

$5.60

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $5.20 - $5.60

Effective Pixels: 3MP

Mount: M12

Bottom Group

Description

Model			LF3.6-M12-5MP
Parameter of Lens
Pixel			5MP
Image Format			1/2.5″
Focal Length			3.6mm
Aperture			F2.0
Mount			M12×0.5
Field of View D×H×V(°)	1/2.5"		135.7°×94.4°×65.7°
	1/2.7"		114°×84°×60.7°
	1/3"		99°×79.2°×59.4°
Optical distortion	1/2.5"		-62.9%
	1/2.7"		-45.7%
	1/3"		-35.0%
CRA			≤12.41°
M.O.D.			0.3m
Dimension			Φ14×17.3mm
Weight			5g
BFL			6.7mm
MBF			6.2mm
Operation	Iris		FIX
	Focus		/
	Zoom		/
Operating temperature			-20°C～+60°C

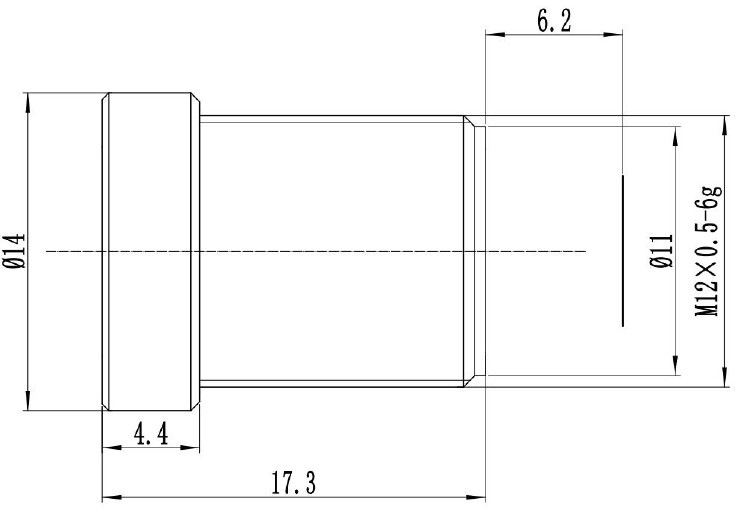

Size

Size tolerance(mm):	0-10±0.05	10-30±0.10		30-120±0.20
Angle tolerance			±2°

FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.

Shipping

Shipping fee table:

Quantity:

Ship to:

Remark:
For orders with a high total amount, please choose DHL, EMS other than Airmail, ePacket.
