LF6-M12-5MP-F2-IR 6mm 5MP 1/2.5" M12 Mount F2.0 Fixed CCTV Camera Lens

SKU:

LF6-M12-5MP-F2-IR

Category: Monofocal Lens M12

$4.85

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $3.91 - $4.85

Effective Pixels: 5MP

Aperture: F2.0

Bottom Group

Description

Model					LF6-M12-5MP-F2-IR
Parameter of Lens
Pixel					5MP
Image Format					1/2.5"
Focal Length					6mm
Aperture					F2.0
Mount					M12×0.5
Field Angle D×H×V(°)				" °	1/2.5 (4:3)		1/3 (4:3)		1/4 (4:3)
				D	67		60.5		44
				H	53.6		48.4		35.2
				V	40.2		36.3		26.4
Optical Distortion					-19.6%		-16%		-8.4%
M.O.D.					0.3m

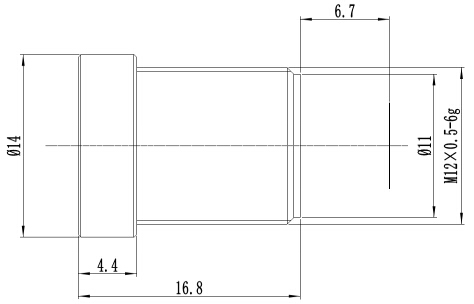

Dimension					Φ14×16.8mm
Weight					6g
Back Focal Length					7.3mm
MBF					6.7mm
Operation		Iris			FIX
		Focus			/
		Zoom			/
Operating temperature					-20°C~+60°C
Size

Size tolerance(mm):		0-10±0.05		10-30±0.10		30-120±0.20
Angle tolerance					±2°
