8MP High Resolution Design,  Apply to 4K Camera.

Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Applying to Traffic Monitoring, Toll Gate Capturing and General Monitoring

Model:			LF1150-CS-8MP-F1.4-D
Parameter of Lens
Pixel			8MP
Image format			1/1.7" 1/1.8″
Focal length			11-50mm
Aperture			F1.4
Mount			CS
Field Angle D×H×V(°)		" °	1/1.7 (4:3)		1/1.7 (4:3)		1/2 (4:3)
			11mm	50mm	11mm	50mm	11mm	50mm
		D	47	10.9	44.2	10.4	39.5	9.4
		H	36.9	8.8	38.1	9	31.2	7.5
		V	27.2	6.6	21	5.1	23.1	5.6
Optical Distortion			-10.7%~-0.07%(1/1.7")
M.O.D.			1.5M
Dimension			Φ50x92.5mm
Weight			/
Coating Range			400-900nm
Flange BFL			12.5mm (in air)
Back focal length			>8.26mm (in air)
MBF			>6.95mm (in air)
Operation	Iris		DC
	Focus		Manual
	Zoom		Manual
Operating temperature			-30°C~+70°C

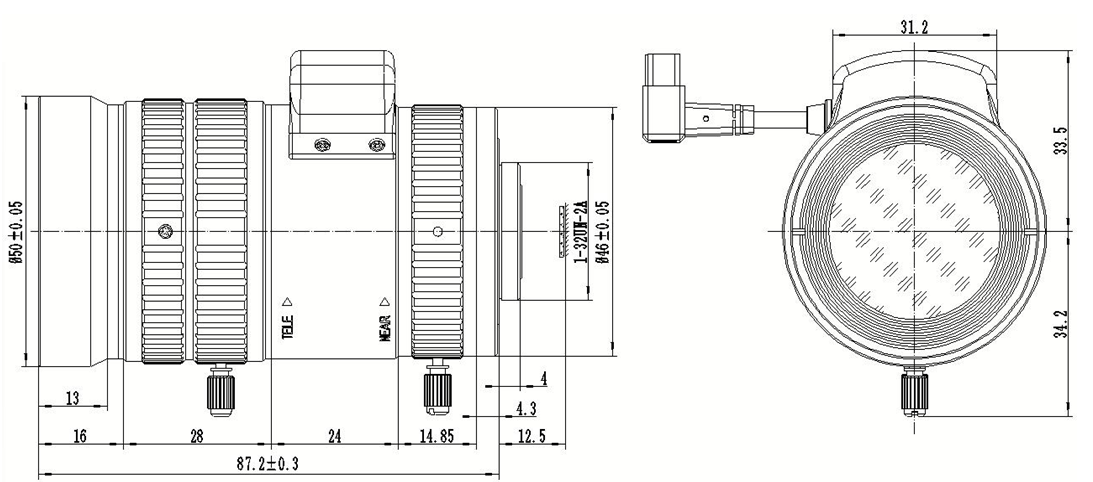

Size
Size tolerance(mm):	0-10±0.05	10-30±0.10			30-120±0.20
Angle tolerance	±2°
