IPCM-3516DS123-D29-AZ3015 1/2.8" 3MP Sony IMX123 ARM A7 5X 2.7-13.5mm Auto Zoom Security CCTV HD CMOS Camera Module

Empty

Total: $0.00

Checkout

Hupuu Electronics

IPCM-3516AS178-D29-AZ3611 1/1.8" 5MP Starvis Sony IMX178 ARM A7 IP Camera Module with 3.6-11mm 3X Auto Zoom Lens

IPCM-3516DS291-D29-AZ0550 1/2.8" 2MP Sony IMX291 ARM A7 10X 5-50mm Auto Zoom Starlight Security CCTV HD 1080P Camera Module board

IPCM-3516DS123-D29-AZ3015 1/2.8" 3MP Sony IMX123 ARM A7 5X 2.7-13.5mm Auto Zoom Security CCTV HD CMOS Camera Module

SKU:

IPCM-3516DS123-D29-AZ3015

Category: Auto Zoom IP Camera Module 2.7-13.5mm Auto Zoom Camera Module Starlight Camera Board Starlight IP Camera Board

Video Coding Format: H.264 H.265 Mjpeg

$88.75

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $82.69 - $88.75

Imaging Sensor: IMX123

Effective Pixels: 3MP

Bottom Group

Description

Product features:

· Use latest standard H.265 video compression technology,High compression ratio,accurate and

stable stream control ,support dual stream

·Use 1/2.8 inch 3.0MP CMOS ,Sony high performance image sensor

·5X optical zoom, focus faster, zoom process with clear throughout

·Built-in automatic night and day double filter switching mechanism, with manual or automatic

color

·Support dual stream

·Support network disconnection, motion detection, video block intelligence, intelligent defocus

detection and alarm

·Support intelligent coding control

·Max supports 4 ROI regions of interest

·Support rich network protocol

·Support D-WDR,3D noise reduction

·Support ONVIF protocol, GBT28181

Model	IPCM-3516DS123-D29-AZ3015
Camera
Image Sensor	1/2.8" 3MP Progressive Sony IMX123 CMOS
CPU	ARM A7 SOC
Effective Pixels	2048(H)x1536(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto (1/25 ~ 1/10000s) automatic regulation
Min. Illumination	0. 001Lux/F1.2 (Color)
S/N Ratio	≥50db(AGC OFF)
Camera Features
Day/Night	Auto(ICR)/Color/B/W
WDR	>80dB
White Balance	Auto
Gain Control	Auto
Noise Reduction	3D
Lens interface	5 times optical zoom lens,2.7-13.5mm 4MP Automatic lens
Privacy Masking	Up to 4 areas
Video
Compression	H.264/MJPEG/H.265
Main Stream	20481536/19201080/720P(1280*720)(1 ~ 25/30fps)
Sub Stream	D1(704576)/VGA(640480)/QVGA(320*240)(1 ~ 25/30fps)
Bit Rate	32KB ~16Mbps, support VBR, CBR
Imaging Setting	Adjustable brightness, contrast, saturation, sharpness, white balance AWB(automatic white balance), AGC(automatic gain), AE(automatic exposure control), AIC(automatic aperture correction) support privacy area occlusion OSD superposition image rotation: normal 90/270°automatic, manual or automatic color switching
Text Overlay	Channel, Date & Time, Bit Rate
Network
Data Storage	Video record, Picture format
Trigger	Manual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmission	FTP, E-mail, Browser, CMS
Protocol	TCP/IP, UDP, RTP, RTSP, TRCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIF	ONVIF 2.4
Max. User Access	8 users, IE, Google, Firefox
Smart Phone	Windows Mobile, iPhone, iPad, Android
Auxiliary Interface
Audio in	Support
Audio out	Support
BNC Video out	Support
RS422/RS485	Support
USB	Support (32G USB flash)
Alarm in	Support
Alarm out	N/A
IO Interface	Support
Smart function
Smart coding	Supports low bit rate, low latency, ROI enhancement coding, supports 4 ROI areas
Smart detection	Support intelligent occlusion detection and intelligent defocus detection
Smart control	Support intelligent control, alarm opening/ shutdown, trouble shooting and intelligent noise reduction
General
Power Supply	DC12V / PoE (Optional 802.3af)
Power Consumption	< 3W
Working Environment	-20°C~+55°C , Less than 90% RH
Dimensions	38 x 38mm
Weight	0.15kg

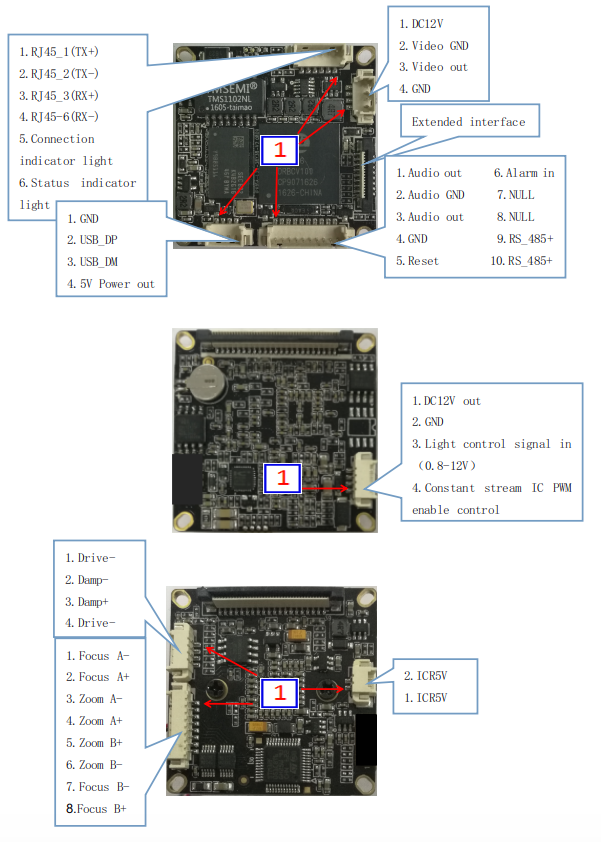

JP1 Power Supply Connector
1	DC12V
2	CVBS GND
3	CVBS Signal Out
4	GND
JE1 Network Connector
1	RJ45_1
2	RJ45_2
3	RJ45_3
4	RJ45_6
5	Network Connected Light (Green light)
6	Network Status Light (Yellow light)
J1 IR-CUT Connector
1	IR-CUT Control Signal 5V
2	IR-CUT Control Signal 5V
J2 DC Auto-iris Connector
1	Drive-
2	Damp-
3	Damp+
4	Drive+
J3 Motorized Lens Connector (For AZ Series and lens YT2812FB.ICR-J-6)
1	Focus A-
2	Focus A+
3	Zoom A—
4	Zoom A+
5	Zoom B+
6	Zoom B-
7	Focus B-
8	Focus B+
J4 P-Lris Connector
1	IRIS A-
2	IRIS B+
3	IRIS A+
4	IRIS B-
J5 IR Light Board Connector
1	IR Light Board Power Supply (12V)
2	GND
3	IR Feedback Signal Input (0.8V-12V)
4	IC PWM Control
JVO1 BNC Video out
1	BNC Video out
2	GND
J6 Functions Connector
1	Audio In (MIC/ Line )
2	GND (Audio)
3	Audio Out
4	GND
5	Reset
6	Alarm In
7	NULL
8	NULL
9	RS_485+
10	RS_485-
JU1
1	GND
2	USB_DP
3	USB_DM
4	5V Power Supply

Interface

This product not include cable by default, please visit ip camera cable to select prefer cable.

JP1 Power interface		Preview	Pitch
1	DC12V		1.25mm
2	Video GND
3	CVBS output
4	GND
JE1 Network interface			1.25mm
1	RJ45_1 (TX+)
2	RJ45_2 (TX-)
3	RJ45_3 (RX+)
4	RJ45_6 (RX-)
5	Network connection indicator light (green light)
6	Network status indicator light (yellow light)
Sensor board J1 IR-cut interface			1.25mm
1	IR-CUT control signal 5V-
2	IR-CUT control signal 5V+
Sensor board J2 DC auto Iris interface (Support automatic aperture model: -AI)			1.25mm
1	drive-	Depend on color definition of Lens
2	damp-
3	damp+
4	drive+
Sensor board J3 Power Auto Zoom lens interface (Support Electric lens model:-AZ)			1.25mm
1	Focus A-	Depend on color definition of Lens
2	Focus A+
3	Zoom A-
4	Zoom A+
5	Zoom B+
6	Zoom B-
7	Focus B-
8	Focus B+
Sensor board J4 No definition
J5 Infrared Light board interface			1.25mm
1	Infrared Light board12V power output
2	GND
3	LED feedback signal input(0.8V-12V)
4	Infrared Light enable control
J6 function interface			1.25mm
1	Audio in	Support powerless microphone and Line in
2	Audio GND
3	Audio out
4	GND
5	Reset
6	Alarm in 1, low level effective
7	Alarm in 2 (reserve), low level effective
8	Alarm out control GPO, 3.3V level signal
9	RS_485+
10	RS_485-
JU1 USB interface			1.25mm
1	GND	Support MT7601 / RT5370 USB wifi module. Support TF card extension board.
2	USB_DP
3	USB_DM
4	5V power out
J7 expandion board			FPC
1	USB_DP
2	USB_DM
3	System
4	SDIO Work Clock
5	SDIO Data3
6	SDIO Data2
7	SDIO Data1
8	SDIO Data 0
9	System
10	SDIO Order
11	SDIO Power enable control signal
12	SDIO Card detection signal
13	SDIO Pull-up resistor power out
14	Alarm out control GPO
15	System
16	DC5V Power out

Compitable Accessories

Compatible Cable

CBB-EPA2 Ethernet DC power Audio tail cable for ip camera module

From $1.12

CBW-EP Waterproof Ethernet DC power tail cable for IP Camera module

From $0.59

CBB-OBP-POE-DC power tail cable for ip poe 48v camera module with buildin POE

From $4.50

CBW-OBP-POE-DC power tail cable for ip poe 48v camera module with buildin POE module, Support POE / none POE + DC 12V power supply

From $3.60

CBW-EPA Waterproof Ethernet DC power Audio tail cable for IP Camera module

From $0.94

CBF-D29 Ethernet DC power Audio in out Alarm in out RS485 Reset Analog/cvbs tail cable for ip camera -D29 module

From $6.20

Download

Supports for private Protocol of Xmeye and other popular vendor, and full range of H.264, H.265, POE NVR (one key add, Plug-and-play);

Supports iVMS4200, XMeye CMS monitoring platform software;

Supports ONVIF 2.4 protocol;

Supports GB28181 Protocol;

Supports sub IP 11.x.x.x and 192.168.1.88 by default;

Supports HTTP CGI API;

WebCms 3.2.0.46 .zip IE activeX plugin

pConfig_1.0.1.66.zip modify camera configurations, such as WiFi, Default Language, MJPEG, Default IP address. The configuration will be the default configuration when you restore the settings.

DeviceSearch.zip

iVMS-4200(v2.6.2.7).zip HikVision protocol support

Basic FAQ for IE Browser.pdf

Quick Guide for IE Browser.pdf

IE Browser User's Manual.pdf

For Windows:

iVMS-4200: https://hupuu.com/sites/default/files/document/iVMS-4200(v2.6.2.7).zip

Support P2P remote monitor.
Support IE preview, Record(store to PC).

FAQ

What is default IP address, user and password?
Default IP:
192.168.1.88 for wired Ethernet;
192.168.1.160 for wifi;
For bulk operation, you can use sub ip 11.0.0.1 to find, config and upgrade as many cameras as you can.

Default user: admin
Default Password: admin
Does the camera support motion detect?
Yes, it support motion detect, and can send email with snap to you. Save snap image and video to FTP.
Note: by default, sanp image and video save to TF storage, if you don't have TF storage, it will also works for snap and video. The snapped image and video will save to RAM first, then send to email, upload to FTP server. As RAM resource is limited, the video will split into pieces about 1MB per file.
It's better to use TF extension board.
Is IR-CUT dual filter switch necessary?
IR-CUT dual filter switch has two filters, one is IR CUT filter not allow IR light to pass (normally >650nm wavelength), the other is AR filter that all light can pass.
It depends on working conditions, for night using only, no need to use IR-CUT dual filter switch.
For day and night all day using, you should use IR-CUT dual filter switch.
For day using, or some lens with very short back focal length, can paste IR-CUT filter glass to sensor or the end of lens.
