IMX385 + EN781 2MP 1080P 50fps 60fps 3G-SDI HDMI HD-SDI Analog CMOS starlight Industrial camera module

Empty

Total: $0.00

Checkout

Hupuu Electronics

1/2.9" Sony IMX323 2MP 1080P AHD CVI TVI Analog 30X Optical Zoom CCTV HD camera module

IMX385 + EN781 2MP 1080P 50fps 60fps 3G-SDI HDMI HD-SDI Analog CMOS starlight Industrial camera module

IMX385 + EN781 2MP 1080P 50fps 60fps 3G-SDI HDMI HD-SDI Analog CMOS starlight Industrial camera module

SKU:

HS781385RT-HDMI

Category: SDI Camera Board 3G-SDI camera board EX-SDI Camera Board Starlight Camera Board Starlight SDI Camera Board

$249.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $229.00 - $249.00

Imaging Sensor: IMX385

Effective Pixels: 2MP

Accessories: ADKey Cable

Bottom Group

Description

Type specification	HS781385RT-HDMI
Image sensor	1/2”CMOS Sensor/lMX385
Total pixels (MP)	1945 (H) X1097 (V) =2.13M Pixels
SDI output resolution	(720p/25/30/50/60@1080i50/60@1080p25/30/50/60) FPS
HDMI output points slope	(720p/25/30/50/60@1080i50/60@1080p25/30/50/60) FPS
HDMI version	1.4a
Lens	M12/C-CS optional
Menu function	Supports OSD key menu
Minimum illumination (LUX)	Color 0.00013lux/ Black and white 0.0001lux
Good light	Brightness interval value adjustment/electronic shutter mode/ton cumulative value adjustment/automatic gain cabinet value adjustment
Day and night switch	Automatic (ICR)/Color/black and white/external power
color	White Balance (AWB) mode adjustment/Color concentration adjustment
DNR	Off/low/medium/high
Image	Sharpness/Gamma/Mirror (left and right)/Flip (up and down)/Digital magnification/(ACE Contrast)/(DEFOG de-fog)/Privacy Occlusion
System	Communication protocol/Output navigation rate/video range/Color format/audio format/color bar signal/camera name/reset/language
Language	Chinese (Simplified & final)/English/Japanese/Korean
Power Supply (V)	DC12V±10%
Working current (mA)	140mA±10%
Operating temperature (°C)	-40°C~+80°C/0%~90%RH
Size (mm)	32mm round type - three layers

Package:

1x IMX385 + EN781 2MP 1080P 50fps 60fps 3G-SDI HDMI HD-SDI Analog CMOS starlight Industrial camera module

1x SDI Analog DC cable for camera module board

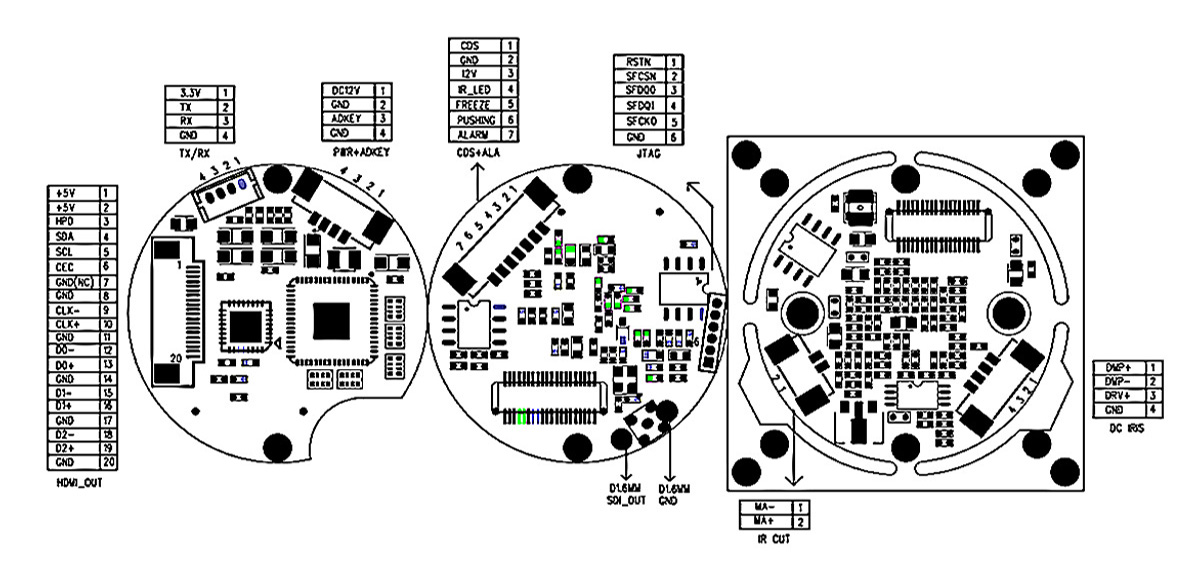

1x FPC HDMI cable IMX385-3G-SDI-HDMI-output-low-illumination-wide-dynamic-industrial-starlight-camera-module-board-1080P-60fps-pins.jpg

[Note] this board support ADKEY osd cable, please choose camera baord kit with OSD cable.

FAQ

What is ADKEY technology?

ADKEY OSD keyboard use 2 wire other than 6 wires offers 5 key include Up Down Left Right and Confim.

When diffenent key press down there will be different resistance between the 2 wire. DSP/Microcontroller detect which key is pressed according to the resitance difference.

What is HD-SDI, EX-SDI?

SDI - Serial Digital Interface, is a uncompressed video format. So there is no need extra time to encode and decode. It is realtime transmission.

HD-SDI - High Definition Serial Digital Interface - is the first HD analog standard, and it uses coax cable to send video in a digital uncompressed format. Transmit video up to 150m (500ft) over 75-3 coax cable.

EX-SDI enhanced SDI technology, can transmit loseless video up to 500m (1600ft) over 75-3 coax cable.

SDI offers better image quality than AHD.

SDI is widely used in film, television, medical, industrial control and other fields.
