IMX385 + EN781 2MP 1080P 50fps 60fps 3G-SDI HDMI HD-SDI Analog CMOS starlight Industrial camera module

2MP 1080P 60fps 3G-SDI HD-SDI CMOS medical endoscope camera motherboard DVR kit

SKU:

HS1080-MB-CAM-KIT

Category: SDI Camera Board 3G-SDI camera board EX-SDI Camera Board Starlight Camera Board Starlight SDI Camera Board Medical Endoscope Board

$899.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $866.00 - $899.00

Imaging Sensor: IMX385

Effective Pixels: 2MP

Accessories: ADKey Cable

Bottom Group

Description

I. Applications:

This product is specially designed for industrial medical and complete endoscope solution. With photo, video, video storage function, input SDI 1080P 60FPS, output HDMI/DVI/SDI/CVBS, with the control of the motherboard menu and shortcut key function. Widely used in medical imaging industry.

II. Characteristics
2.1 Input signal SDI 1080P 60FPS/DC12V power supply
2.2 Support photo function, JPG format; U disk 2.0 video, AVI format
2.3 Support one-key white balance/freeze/digital zoom in/out/brightness increase/decrease and other shortcut key functions.
2.4, RTC accurately display the date and time
2.5.Support RS232 protocol

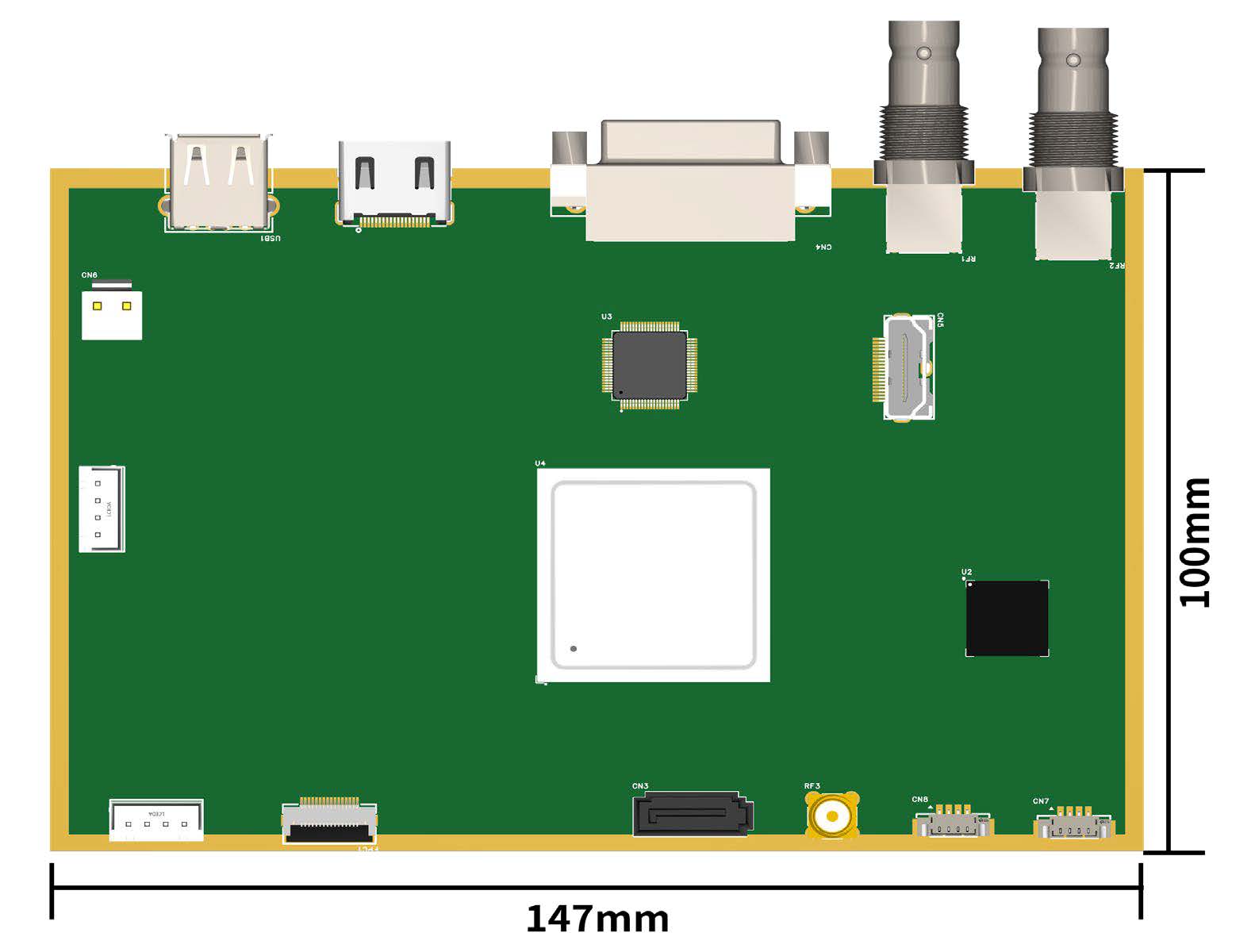

III. Board Size

IV. Functions / Specifications

Input interface	SDI 1080P 60FPS
Output interface	HDMI+DVI+SDI+CVBS
Resolution	1920*1080
Joystick control	Control motherboard menu and shortcut keys via RX/TX (white balance/freeze/digital zoom/brightness add/subtract, etc.)
USB interface	Memory recording
SATA interface	Memory recording
RS232	Support debugging /CMOS modules
Operating voltage	DC12V/5A
Operating temperature	- 30 ℃ ~ 60 ℃
Motherboard size	L147mm*W100mm

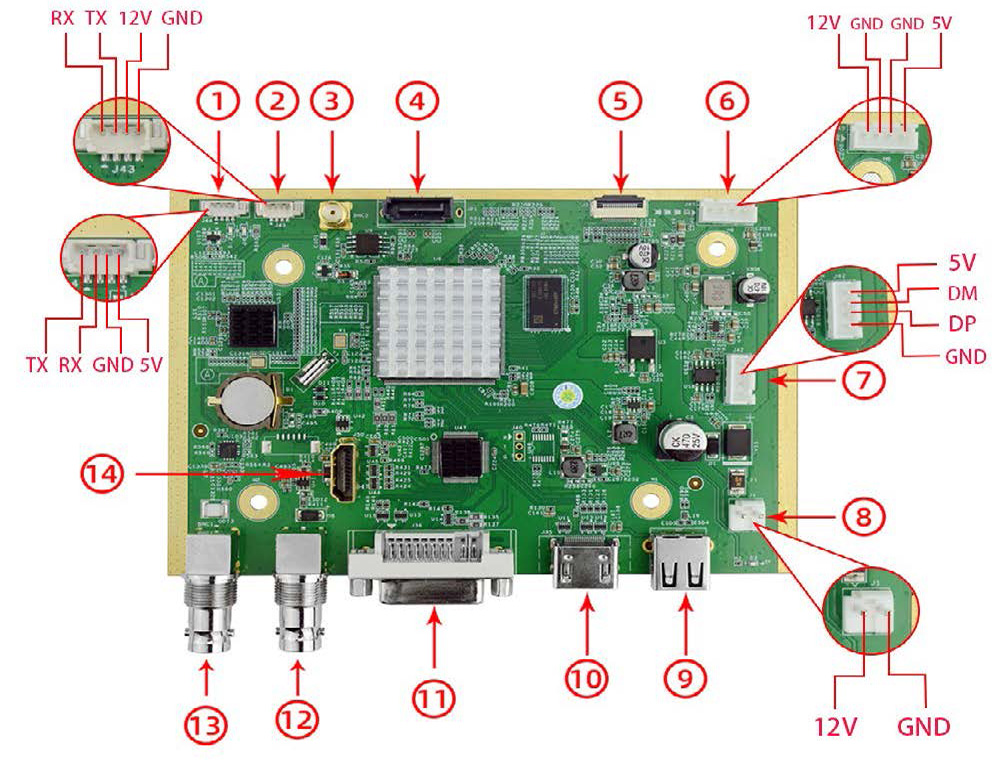

V. Connectors

(1) UART 1	(8) Power input
(2) UART 2	(9) USB2.0
(3) SDI input	(10) HDMI output
(4) SATA data	(11) DVI output
(5) FPC16	(12) CVBS output
(6) SATA power supply	(13) SDI output
(7) USB2.0	(14) HDMI output

Package:

1x 1080P endoscope motherboard (No housing)

1x 1080P endoscope camera (handle housing optional)

[Note] this board support ADKEY osd cable, please choose camera baord kit with OSD cable.

FAQ

What is ADKEY technology?

ADKEY OSD keyboard use 2 wire other than 6 wires offers 5 key include Up Down Left Right and Confim.

When diffenent key press down there will be different resistance between the 2 wire. DSP/Microcontroller detect which key is pressed according to the resitance difference.

What is HD-SDI, EX-SDI?

SDI - Serial Digital Interface, is a uncompressed video format. So there is no need extra time to encode and decode. It is realtime transmission.

HD-SDI - High Definition Serial Digital Interface - is the first HD analog standard, and it uses coax cable to send video in a digital uncompressed format. Transmit video up to 150m (500ft) over 75-3 coax cable.

EX-SDI enhanced SDI technology, can transmit loseless video up to 500m (1600ft) over 75-3 coax cable.

SDI offers better image quality than AHD.

SDI is widely used in film, television, medical, industrial control and other fields.
