IMX385 + EN778 2MP 1080P 50fps 60fps 3G-SDI HD-SDI Analog CMOS starlight Medical endoscope camera module Dual 30mm diameter Medical Imaging board

SKU:

HS781FS385-D30

Category: SDI Camera Board 3G-SDI camera board EX-SDI Camera Board Starlight Camera Board Starlight SDI Camera Board Medical Endoscope Board

$168.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $145.00 - $168.00

Imaging Sensor: IMX385

Effective Pixels: 2MP

Hole Distance: 22mm

Accessories: ADKey Cable

Bottom Group

Description

MODEL	HS778S385-D30
DSP	Eyenix EN781F
Image Sensor	1/2" SONY IMX385 sensor
Pixels	1920(H) × 1080(V)
Scanning System	Progressive
Resolution	Digital:1080p (60fps / 50fps 30fps / 25fps)
Min.lllumination	Color:0.00008 lux Color:DSS: 0.000008 lux
Video Output	Digital: HD-SDI / EX‐SDI (1080P) Analog: CVBS(960H) NTSC/PAL (Switch by OSD)
S/N Ratio	More than 42dB(AGC off)
WDR	EX-SDI HD-SDI WDR
ACE&DWDR	CVBS DWDR
Lens	DC / Manual / Fixed
Brightness	0‐20 steps
AGC	0‐20 steps
Sens up	1x-32x
Shutter Speed	AUTO / MANUAL (1/50\60 ~ 1/60,000 sec)
Digital Slow Shutter	Off / On(x4)
Defog	Off / On
Shading	Off / On
BLC	Off / BLC
HLC	Off / HLC
Day&Night	Auto / Color / B&W
White Balance	Auto / Auto ext / Pushing / Manual
Focus ADJ	Off / On
Monitor	0 / 1 / 2 / 3
DNR(Dight Noise Reduction)	Off / Low/ Middle / High
Mirror	Off / On
H‐V‐REV	Off / On
Sharpness	0‐10 steps
Digital Zoom	x1-x10
Motion	Off / on
Privacy Mask	24 Masks
Language	Chinese / English polyglot
Power(Max.) supply	DC12V ±10%<1.80W
Video Output	EX‐SDI: SMA connector & CVBS
HD-SDI distance	SDI(ND5C-2V 75Ohm) 500m
Size	Dual Diameter 30mm
Weight	15g

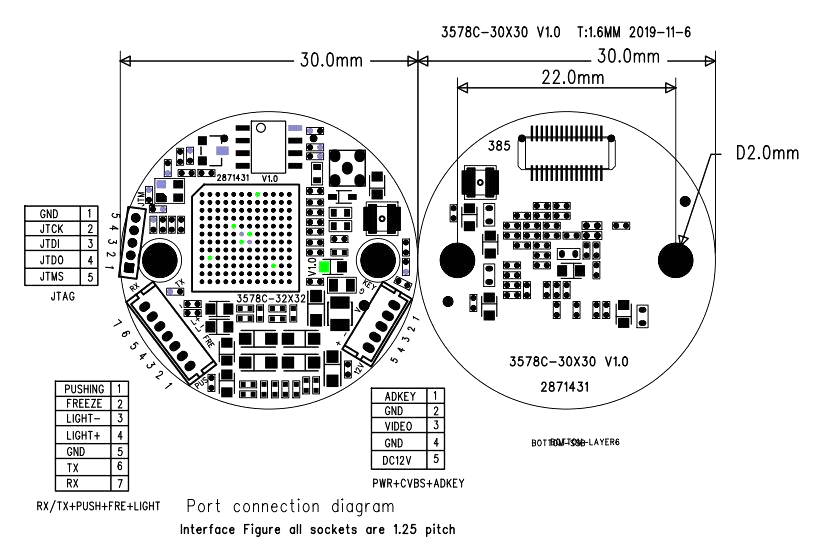

Pin difinition:

The module support pin shortkey to adjust AWB and freeze.

Package:

1x IMX385 + EN778 2MP 1080P 50fps 60fps 3G-SDI HD-SDI Analog CMOS starlight Medical endoscope camera module Dual 30mm diameter Medical Imaging board

1x SDI Analog DC OSD Joystick cable for camera module board

[Note] this board support ADKEY osd cable, please choose camera baord kit with OSD cable.

FAQ

What is ADKEY technology?

ADKEY OSD keyboard use 2 wire other than 6 wires offers 5 key include Up Down Left Right and Confim.

When diffenent key press down there will be different resistance between the 2 wire. DSP/Microcontroller detect which key is pressed according to the resitance difference.

What is HD-SDI, EX-SDI?

SDI - Serial Digital Interface, is a uncompressed video format. So there is no need extra time to encode and decode. It is realtime transmission.

HD-SDI - High Definition Serial Digital Interface - is the first HD analog standard, and it uses coax cable to send video in a digital uncompressed format. Transmit video up to 150m (500ft) over 75-3 coax cable.

EX-SDI enhanced SDI technology, can transmit loseless video up to 500m (1600ft) over 75-3 coax cable.

SDI offers better image quality than AHD.

SDI is widely used in film, television, medical, industrial control and other fields.
