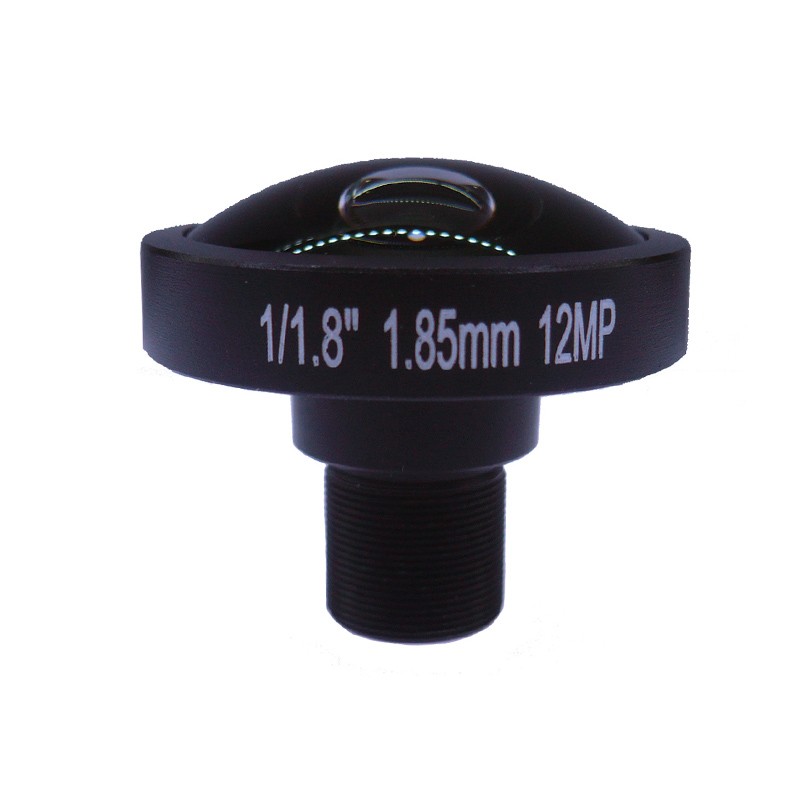

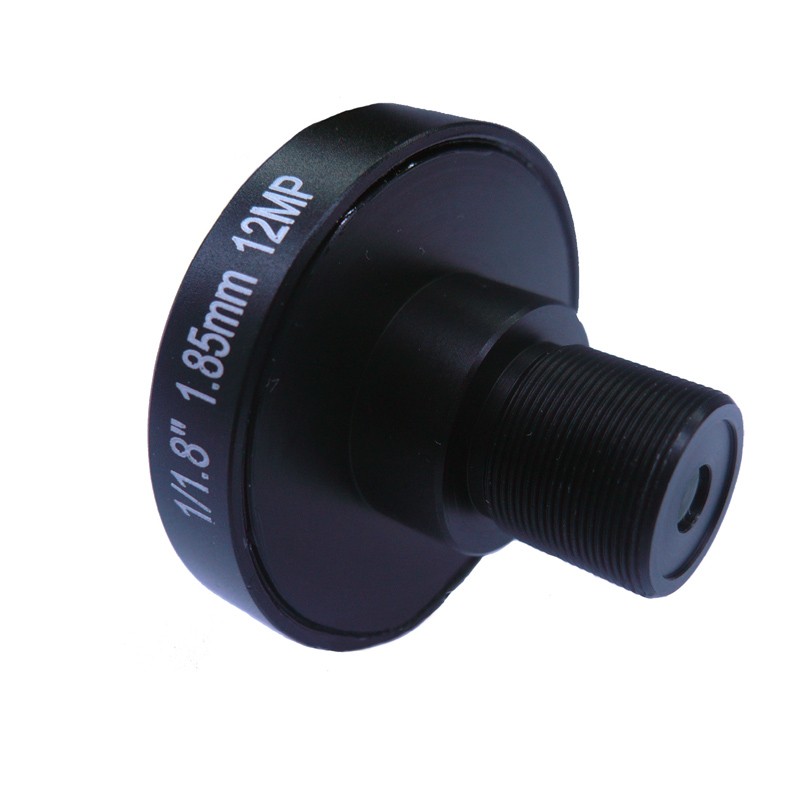

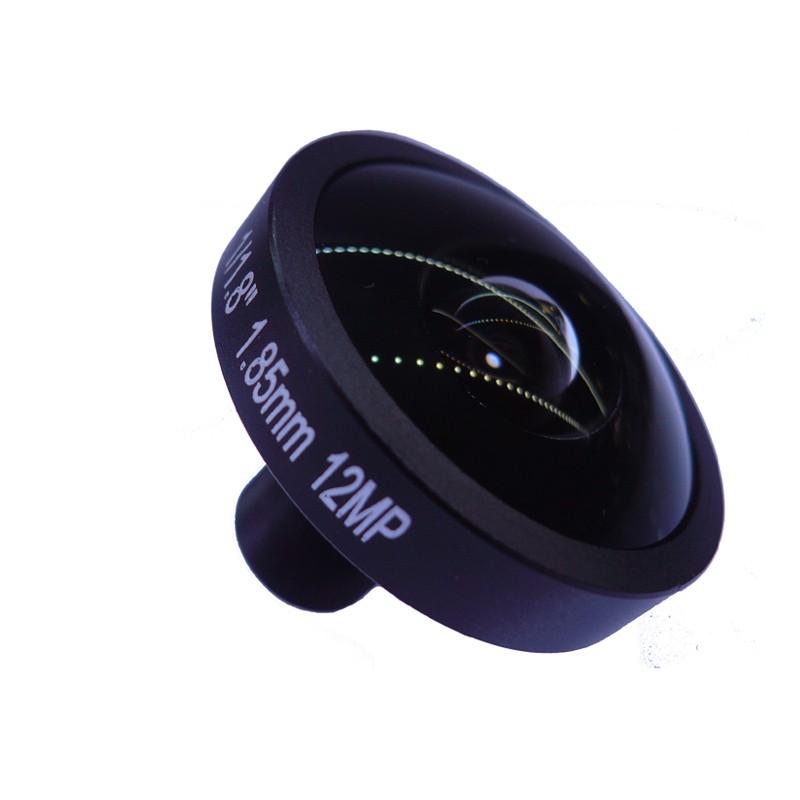

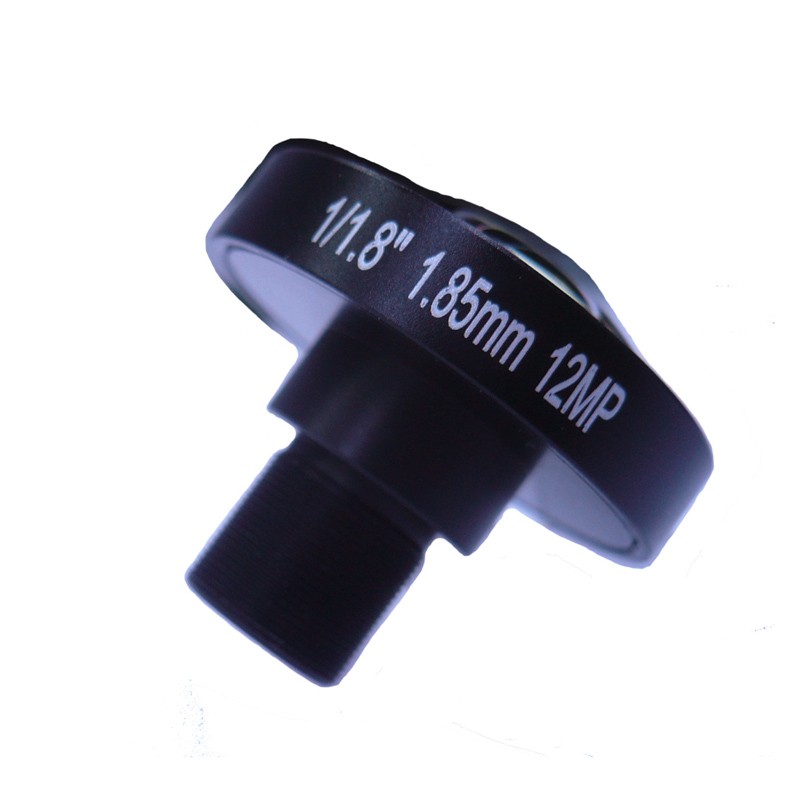

HD 12MP 1.85mm 4K Lens 185degree Wide Viewing Fisheye Action Sport Camera lens 1/1.7" IMX226 1/1.8" Format

SKU:

FE1.85-12MP

Category: 1/1.7" Lens 1/1.8" Lens Monofocal Lens M12 1.85mm M12 12MP Lens Fisheye Lens

$35.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $30.00 - $35.00

Aperture: F2.0

Mount: M12

Bottom Group

Description

[Product Discription]

Focal Length: 1.85mm Lens
Black Vignetting: NO
Weight: 30g
Horizontal Field of View (HFOV) : 185° 1/1.7"(4:3 ratio)
Aperture (f Stop): 2.0
Back Focal Length (BFL): 6.25mm
Native Camera Sensor Support: 1/1.8" 1/1.7"( IMX226 4:3 ratio)
Native Megapixel Support: 12MP
Thread Material: Metal
Optics Material: Glass

Model			FE1.85-M12-12MP-F2
Parameter of Lens
Pixel			12MP
Image Format			*Φ5.6mm 1/1.7" (For IMX226 40003000)**
Focal Length			1.85mm
Aperture			F2.0
Mount			M12×0.5
Field Angle D×H×V(°)		" °	1/1.7 (4:3)		1/2 (4:3)	1/2.5 (4:3)
		D	185		185	185
		H	185		185	185
		V	185		154.9	126.4
Optical Distortion			-97.4%		-97.4%	-97.4%
M.O.D.			0.15m
Dimension			Φ34×29.3mm
Weight			30.4±2g
Flange BFL			/
BFL			6.25mm
MBF			5.7mm
IR Correction			Yes
Operation	Iris		FIX
	Focus		/
	Zoom		/
Operating temperature			-20°C~+60°C
Size

Size tolerance(mm):	0-10±0.05	10-30±0.10		30-120±0.20
Angle tolerance			±2°

FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.
