G347D 1/1.8" SONY IMX347 4MP H.265 H.264 IP Starlight CCTV Camera Module board HTML5 dual board

G347D 1/1.8" SONY IMX347 4MP H.265 H.264 IP Starlight CCTV Camera Module board HTML5 dual board

SKU:

G347D

Category: Starlight Camera Board Starlight IP Camera Board IP Camera Board 4MP IP Camera Board

Video Coding Format: H.264 H.265 H.265+

HTML5 Starlight

$50.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $47.00 - $50.00

Sensor Optical Format: 1/1.8"

Imaging Sensor: IMX347

Effective Pixels: 4MP

Hole Distance: 22mm

Bottom Group

Description

Features:

1/1.8" 4MP Sony lMX347 CMOS sensor

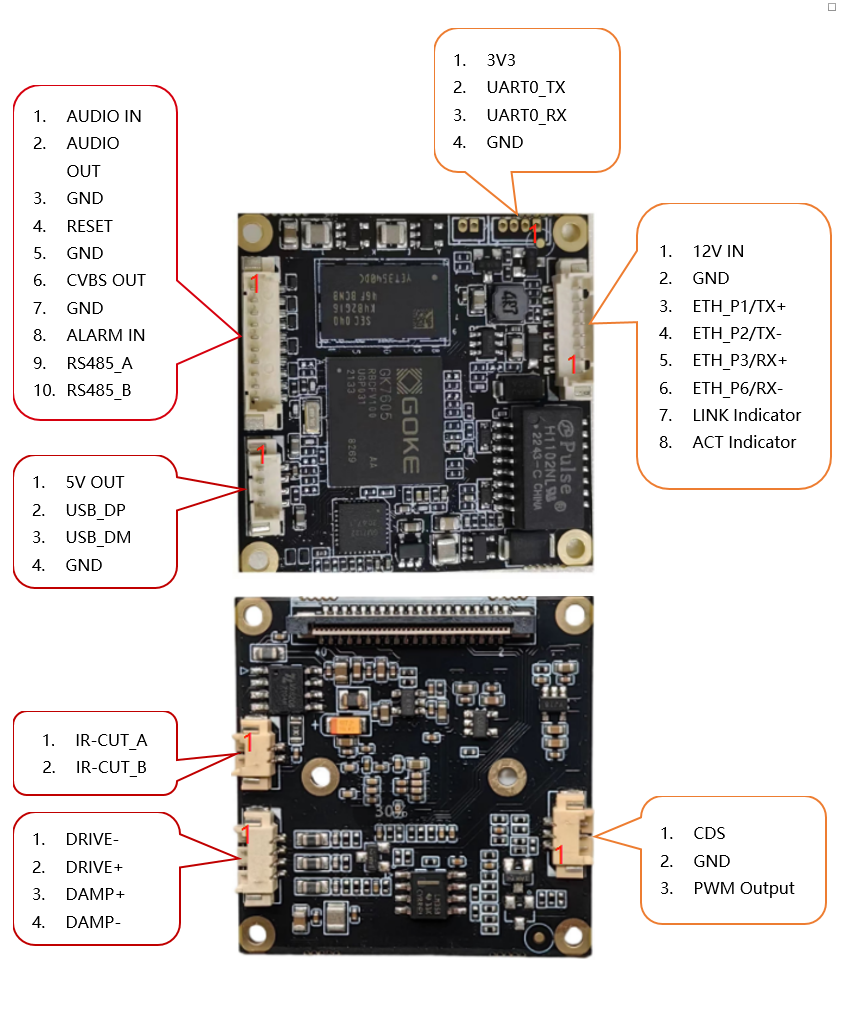

Standard 38*38 Dual board structure
Support H.265+, H.265, H.264 encoding
Support image flip, support backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, support digital wide dynamic
support IR/full color mode, support PWM dimming
Support CVBS analog video output (optional)
Support standard ONVIF
Support motorized zoom (optional)
Provide SDK development kit, support secondary development
Intelligent functions: motion detection, area intrusion, intelligent PTZ, off-duty alarm

Support extention board:

SD card, alarm output etc (-ET extension board Optional)

Support motorised lens/POE/Wifi (Optional)

Specification
SOC	GK7205V300，Cortex A7@900MHz
Sensor	1/1.8" Progressive Scan CMOS IMX347
Min illumination	Color：0.0001Lux@F1.0(AGC ON), Black & White：0Lux(IR ON)
WDR	120 dB

Main Stream Resolution	25 fps@（2688x1520, 2560x1440) 30fps @ (1920 × 1080，1280×960，1280×720）
Sub Stream Resolution	30 fps@（704×576，640×480）
Coding	H.265+/H.265/H.264
Bitrate	32 Kbps~16 Mbps
H.264 coding	Baseline Profile/Main Profile/High Profile
H.265 coding	Main Profile
Bitrate	CBR，VBR
OSD	Support
Image Enhance	Backlight compensation, glare suppression, 3D digital noise reduction, fog transmission
Image settings	Rotation, saturation, brightness, contrast, sharpness, AGC, white balance, day/night conversion support

Audio port	1ch input, support mic / line in; 1ch output support earphone or amplifier
Audio sampling bitrate	8 kHz
Audio coding format	G.711u law / G.711a law / G.726 / AAC-LC

Preview channels	6ch MAX
Protocol	HTTP, HTTPS, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE Etc.，Support ONVIF standard protocol
Browser	Preview with plugin：IE10，IE11 Preview with local service：Edge，Chrome，Firefox etc.

Network	1 RJ45 Ethernet port, 10Mbps/100Mbps adaptive
Audio	1ch input, support for microphone or pickup input; 1ch output, support for connecting headphones or amplifiers
LED light	Support photosensitive detection input, support PWM dimming
USB	1 USB2.0 (5V Power)，Support 4G/WiFi (Optional)
Reset	Support
CVBS output	1ch CVBS analog video output (optional)

Size	38x38x10.8mm，38mm Single board structure
Weight	15 g
Working temperature	-20°C ~ +60°C
Power consumption	DC12V Power input, 1.2W (Max)
