2MP 1/4.5" AHD TVI CVI CVBS Camera board for CCTV Camera

Empty

Total: $0.00

Hupuu Electronics

SKU:

A4CB-5029

Category: AHD CVI TVI Analog 4 in 1

Video Coding Format: AHD Analog (CVBS) CVI TVI

$3.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $2.50 - $3.00

Imaging Sensor: OV4689

Effective Pixels: 4MP

Description

2MP 1/4.5" AHD TVI CVI CVBS Camera board for CCTV Camera

Support CVBS/CVI/TVI/AHD

Support 720P/1080P

Support IR-CUT switch,CDS external control , D/N

Support OSD, support on-off button to change the PAL/NTSC (Custom the software)

Adaptive Digital Noise Reduction, 2D-DNR

Support UTC

Support PWM light control/No photosensitive control

6KV lightning protection, large capacitance design for power supply

Support DC 6-15V wide power range supply

32x32/38x38（mm）

Model	A4CB-5029
Model	2MP 1/4.5" AHD TVI CVI CVBS Camera board for CCTV Camera
Detailed Spec.
Sensor	1/4.5"　inch CMOS
Format	PAL / NTSC
Video Output	AHD / TVI / CVI / CVBS optional
Effective pixels	1080P: 1920 x 1080 25/30fps 720P: 1280 x 720 25/30fps CVBS: 25/30fps
Illumination	0.01Lux @ F1.2 (AGC on), 0Lux with IR
Shutter	Auto
D/N	Ext (default) / Auto / Color / B&W
Synchronously	Internal
OSD Menu
Exposure	Brightness / Exposure Mode / Gain
BW	ATW / MWB
D/N mode	Infrared / Auto / Color / B&W
Video Setting	Contrast / Sharpness / Saturation / DNR / Video Format / DWDR
Language	ENG / CHN1 / CHN2 / Pyccknn / Espanol / Francais / Polski / Italiano / Portuguese
Reset
General
Operation Temperature	-20°C ~ 60°C
Operation Humidity	Relative humidity less than 90%
Power	DC 12V (±20%) <50mA
Dimension	3838 / 3232 (mm)

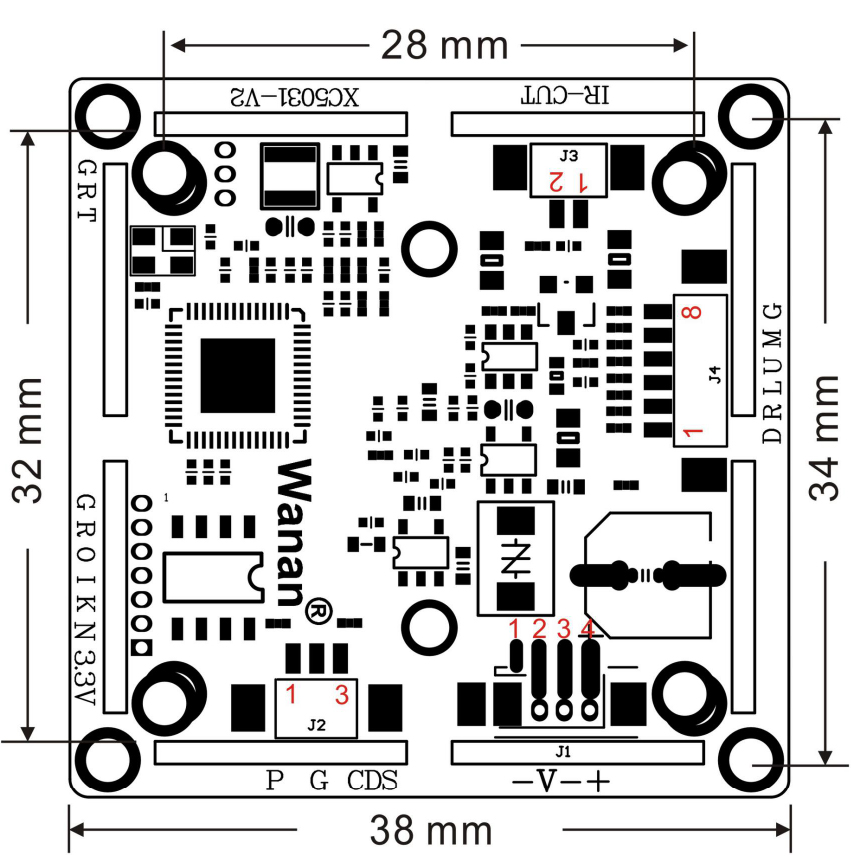

Pin Definition:

J1		J4		J3		J2
1	GND	1	DOWN	1	IR-CUT1	1	Warm Light
2	VIDEO	2	RIGHT	2	IR-CUT2	2	GND
3	GND	3	LEFT			3	CDS
4	DC12V	4	UP /on-off button switching（Custom software)
		5	MENU /on-off button switching（Custom software)
		6	GND
