4MP 1/3.2" AHD TVI CVI CVBS Camera board for CCTV Camera

Empty

Total: $0.00

Hupuu Electronics

SKU:

A4CB-5031

Category: AHD CVI TVI Analog 4 in 1

Video Coding Format: AHD Analog (CVBS) CVI TVI

$3.20

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $2.70 - $3.20

Effective Pixels: 4MP

Description

4MP 1/3.2" AHD TVI CVI CVBS Camera board for CCTV Camera

Model	A4CB-5031
Model	4MP 1/3" AHD TVI CVI CVBS Camera board for CCTV Camera
Detailed Spec.
Sensor	1/3.2" inch CMOS
Format	PAL / NTSC
Video Output	AHD / TVI / CVI / CVBS optional
Effective pixels	5MP: 2560 x 1920 20/12.5fps 4MP: 2560 x 1440 25/30fps 2MP: 1920 x 1080 25/30fps CVBS: 25/30fps
Illumination	0.01Lux @ F1.2 (AGC on), 0Lux with IR
Shutter	Auto
D/N	Ext (default) / Auto / Color / B&W
Synchronously	Internal
OSD Menu
Exposure	Brightness / Exposure Mode / Gain
BW	ATW / MWB
D/N mode	Infrared / Auto / Color / B&W
Video Setting	Contrast / Sharpness / Saturation / DNR / Video Format / DWDR
Language	ENG / CHN1 / CHN2 / Pyccknn / Espanol / Francais / Polski / Italiano / Portuguese
Reset
General
Operation Temperature	-20°C ~ 60°C
Operation Humidity	Relative humidity less than 90%
Power	DC 12V (±20%) <50mA

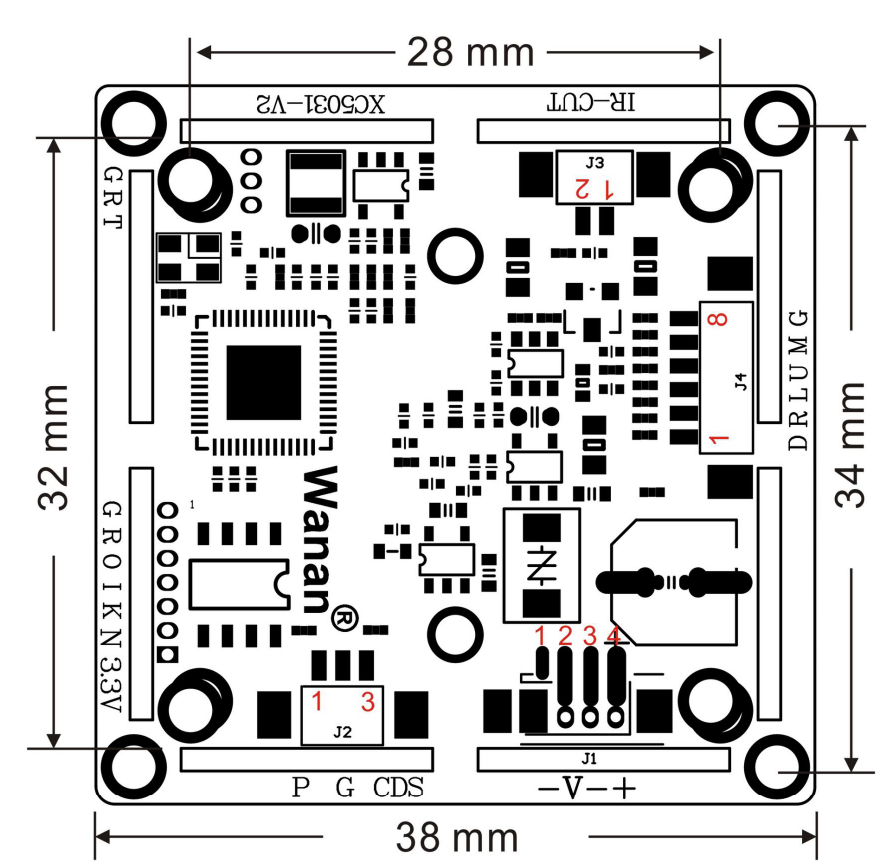

Dimension	3838 / 3232 (mm)

Pin Definition:

J1		J4		J3		J2
1	GND	1	DOWN	1	IR-CUT1	1	Warm Light
2	VIDEO	2	RIGHT	2	IR-CUT2	2	GND
3	GND	3	LEFT			3	CDS
4	DC12V	4	UP /on-off button switching（Custom software)
		5	MENU /on-off button switching（Custom software)
		6	GND
