1/2.8" Sony IMX327 FH8550M AHD TVI CVI Analog 4 in 1 1080P 2MP Starlight Security CCTV CMOS HD Camera Module Board

A4CB-2441S323 1/2.9" SONY IMX323 + NVP2441H CMOS BOARD 1080P 2 MegaPixel FOR CCTV AHD Analog 2000TVL CAMERA

A4CB-2441HS307 1/2.8" Sony IMX307 NVP2441H AHD TVI CVI Analog 4 in 1 Starlight 1080P 2MP HD Security CCTV Camera Module board

SKU:

A4CB-2441HS307

Category: AHD CVI TVI Analog 4 in 1 Starlight Camera Board Starlight AHD Camera Board

Video Coding Format: AHD Analog (CVBS) CVI TVI

$10.80

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $9.70 - $10.80

Sensor Optical Format: 1/2.8"

Imaging Sensor: IMX307

Effective Pixels: 2MP

Hole Distance: 20mm

Bottom Group

Description

1/2.8" Sony IMX307 NVP2441H AHD TVI CVI Analog 4 in 1 Starlight 1080P 2MP HD Security CCTV Camera Module board

SONY 1/2.8" IMX307 CMOS sensor +NVP2441H
Excellent performance, clear and bright picture
Support AHD (Default), TVI, CVI, CVBS
Support PAL (Default), NTSC
Support OSD
Support UTC
2D-DNR+3D-DNR
6KV lightning protection
Size: 38×38mm and 32*32mm
Support Day & Night (branchedHold optional IR-CUT) in the infrared.

Sensor	1/2.8" SONY IMX307 + NVP2441H
System	PAL / NTSC
Effective Pixel	1920(H)×1080(V)
Illumination	0.01 LUX / F1.2
Resolution	AHD:2mp 1080P,CVBS: 2000TVL
D/N	External control (Default) / AUTO / COLOR / B&W
Scanning Frequency	1080P@25fps / 1080P@30fps
Synchronization Method	Internal synchronization
Electronic Shutter	AUTO 1/50~1/50000s
S/N	>46dB
Video Output	AHD / TVI / CVI / CVBS Switch by OSD menu
Operation Temperature	-20°C to 60°C
Working Humidity	Relative humidity less than 90%
Power	DC12V (±10%)

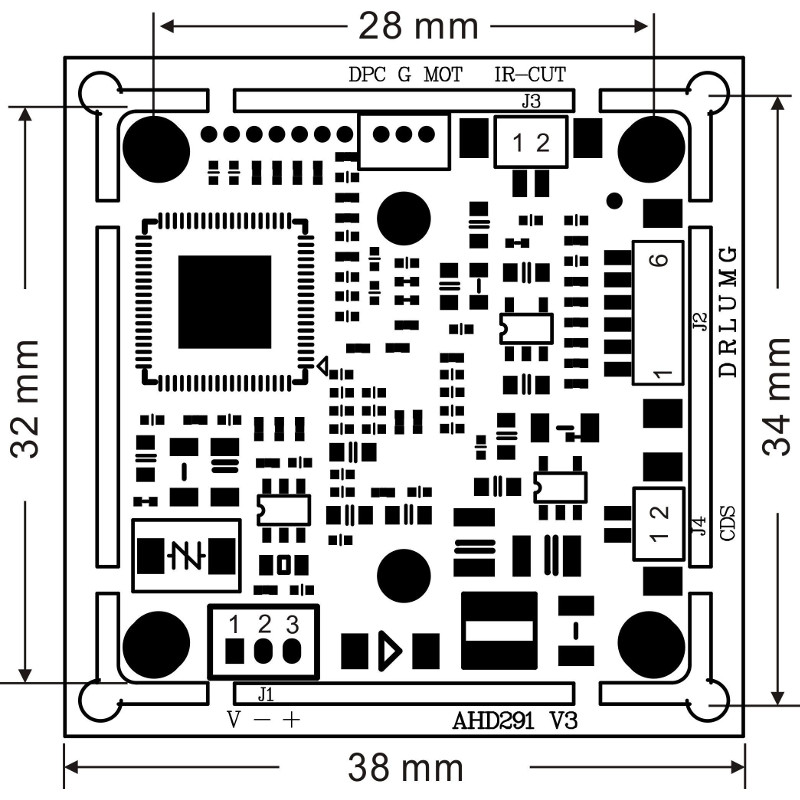

J1		J2		J4		J3
1	VIDEO	1	DOWN	1	CDS	1	IR-CUT1
2	GND	2	RIGHT	2	CDS	2	IR-CUT2
3	DC12V	3	LEFT
		4	UP
		5	MENU
		6	GND

How to shift AHD/CVI/TVI/CVBS Signal by OSD?:

AHD signal is default :

UP: AHD
Down: CVI
Left: TVI
Right: CVBS
(Press button in different direction for 5 seconds to be related signal)

SYSTEM PAL/NTSC:
Set on OSD menu

Compitable Accessories

Compatible IR-CUT

ICR204-M12 8MP 1/2.5" 20/22mm IR CUT filter M12 lens mount double filter switcher for cctv camera Metal

From $1.30

ICR203 CCTV Camera IR-CUT Filter For IP Camera Board 1/1.8" IMX178 IMX185

From $2.80

OSD Menu

LENS	MANUAL
	DC	MODE	INDOOR / OUTDOOR
		IRIS SPEED	0-15
		RETURN
EXPOSURE	SHUTTER	1/25, 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000, X2, X4, X6, X8, X10, X15, X20, X25, X30, AUTO
	AGC	0-15
	SENS-UP	OFF
	SENS-UP	AUTO	SENS-UP	X2, X4, X6, X8, X10, X15, X20, X25, X30
	BRIGHTNESS	1-100
	D-WDR	AUTO/OFF/ON
	D-WDR	ON	LEVEL	0-8
	DEFOG	OFF
		AUTO	POS / SIZE
			GRADATION	0-2
			DEFAULT
BACKLIGHT	OFF
	BLC	LEVEL	MIDDLE / HIGH / LOW
		AREA
		DEFAULT
	HSBLC	SELECT	AREA1 / AREA2 / AREA3 /AREA4
		DISPLAY	ON/OFF
		BLACK MASK	ON/OFF
		LEVEL	0-100
		MODE	ALL DAY
		MODE	NIGHT	AGC LEVEL	0-255
		DEFAULT
WHITE BAL	ATW
	AWC-SET
	INDOOR
	OUTDOOR
	MANUL	BLUE	0-100
	MANUL	RED	0-100
	AWB
DAY&NIGHT	EXT	D→N (DELAY)	0-60
	EXT	N→D (DELAY)	0-60
	AUTO	D→N (AGC)	0-255
		D→N (DELAY)	0-60
		N→D (AGC)	0-255
		N→D (DELAY)	0-60
	COLOR
	B/W	BURST	OFF / ON
		IR SMART	OFF
			ON	LEVEL	0-15
			ON	AREA
		IR PWM	1-100
NR	2DNR	MIDDLE / HIGH / OFF / LOW
NR	3DNR	MIDDLE / HIGH / OFF / LOW
SPECIAL	CAM TITLE	OFF/ON
	D-EFFECT	FREEZE	OFF / ON
		MIRROR	OFF / MIRROR / V-FLIP / ROTATE
		NEG.IMAGE	OFF / ON
	MOTION	OFF
		ON	SELECT	AREA1 / AREA2 / AREA3 / AREA4
			DISPLAY	ON / OFF
			SENSITIVITY	0-100
			COLOR	GREEN / BLUE / WHIT / RED
			TRANS	1.00 / 0.75 / 0.50 / 0.25
			ALARM	VIEW TYPE	ALL / OFF / BLOCK / OUTLINE
				OSD VIEW	ON / OFF
				ALARM OUT	ON / OFF
				ALARM SIG	LOW / HIGH
				TIME	1-15
			DEFAULT
	PRIVACY	OFF
		ON	SELECT	AREA1 / AREA2 / AREA3 / AREA4
			DISPLAY	COLOR / OFF / MOSAIC / INV
			COLOR	WHITE / BLACK / RED / BLUE / YELLOW / GREEN / CYAN / USER
			TRANS	1.00/0.75/0.50/0.25
			DEFAULT
	LANGUAGE	CHN1 /CHN2 /GER /FRA /ITA /SPA /POL /RUS /POR /NED /TUR /ENG
	DEFECT	LIVE DPC	ON	AGC LEVEL	0-255
			ON	LEVEL	0-100
			OFF
		WHITE DPC	ON	POS / SIZE
				START
				DPC VIEW	OFF / ON
				LEVEL	0-60
				AGC	0-14
				SENS-UP	X2, X4, X6, X8, X10, X15, X20, X25, X30
			OFF
		BLACK DCP	ON	POS / SIZE
				START
				DPC VIEW	OFF / ON
				LEVEL	0-100
			OFF
	RS485	CAM ID	0-255
		ID DISPLAY	OFF/ON
		BAUDRATE	2400 /4800 /9600 /19200 /38400
ADJUST	SHARPNESS	AUTO	LEVEL	0-10
			START AGC	0-255
			END AGC	0-255
		OFF
	MONITOR	LCD	GAMMA	USER / 0.45 / 0.50 / 0.55 / 0.6 / 0.65 / 0.7 / 0.75 / 0.8 / 0.85 / 0.9 / 0.95 / 1.0
			BLUE GAIN	0-100
			RED GAIN	0-100
		CRT	BLACK LEVEL	0-60
			BLUE GAIN	0-100
			RED GAIN	0-100
	LSC	OFF / ON
	VIDEO.OUT	PAL
EXIT	SAVE&END
	RESET
	NOT SAVE
