A4CM-8556FS335-AFX5 1/2.8" Sony IMX335 FH8556 AHD TVI CVI Analog 4 in 1 Starlight 5MP 2.7-13.5mm motorized zoom CCTV Camera Module board

Empty

Total: $0.00

Hupuu Electronics

SKU:

A4CM-8556FS335-AFX5

$22.80

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $21.30 - $22.80

Sensor Optical Format: 1/2.8"

Imaging Sensor: IMX335

Effective Pixels: 5MP

Focal Length: 2.7-13.5mm

Mount: M14

Description

A4CM-8556FS335-AFX5 1/2.8" Sony IMX335 FH8556 AHD TVI CVI Analog 4 in 1 Starlight 5MP 2.7-13.5mm motorized zoom CCTV Camera Module board

SONY 1/2.8" IMX335 CMOS sensor +FH8556
Excellent performance, clear and bright picture, upgrade version of IMX291 sensor.
Support AHD (Default), TVI, CVI, CVBS
Support PAL (Default), NTSC
Support OSD
Support UTC
2D-DNR+3D-DNR
6KV lightning protection

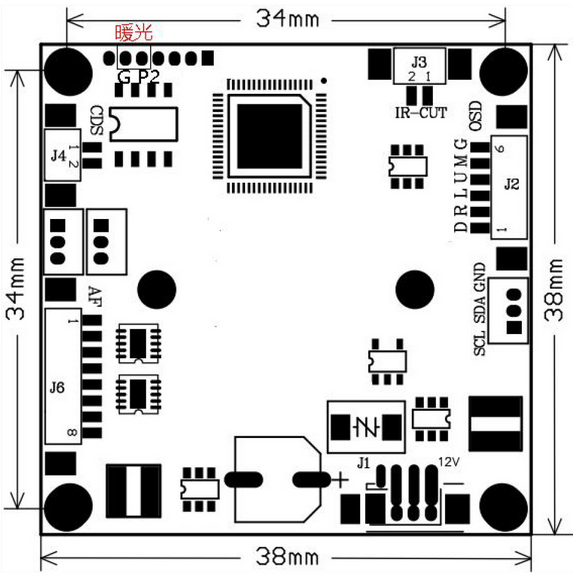

Size: 38*38mm
Support Day & Night (branchedHold optional IR-CUT) in the infrared.

Sensor	1/2.8" SONY IMX335 + FH8556
System	PAL / NTSC
Effective Pixel	2560(H)×1920(V)
Illumination	0.01 LUX / F1.2 AGC ON, 0Lux with IR
Resolution	5MP@20fps/12.5fps
Lens	5MP 2.7-13.5mm motorized zoom lens
D/N	External control(Default)/AUTO/COLOR / B&W
Synchronization Method	Internal synchronization
Electronic Shutter	AUTO 1/50~1/50000s
S/N	>46dB
Video Output	AHD/TVI/CVI/CVBS Switch
Operation Temperature	-20°C to 60°C
Working Humidity	Relative humidity less than 90%
Power	DC12V (±10%) 135mA
