5MP 1/2.5" JX K05 + FH8538M AHD TVI CVI Analog hybird Camera BOARD FOR CCTV Camera

Empty

Total: $0.00

Hupuu Electronics

SKU:

A4CB-8538MK05

Category: AHD CVI TVI Analog 4 in 1

Video Coding Format: AHD Analog (CVBS) CVI TVI

$10.80

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $9.80 - $10.80

Imaging Sensor: K05

Effective Pixels: 5MP

Description

5MP 1/2.5" JX K05 + FH8538M AHD TVI CVI Analog hybird Camera BOARD FOR CCTV Camera

Use JX-K05 5MP progressive scan CMOS,

capture moving images.

AHD Excellent performance, clear and bright picture.

Lux:0.05Lux@(F1.2,AGC ON)，0LUX with IR.

Support IR-CUT,CDS external control ,D/N.

Support OSD,Suitable for user-defined Settings.

Support DWDR.

Adaptive Digital Noise Reduction,2D-DNR.

Support UTC function .

SKU	A4CB-8538MK05
Detailed Spec.
Sensor		1/2.5"JX K05+ FH8538M
System		PAL(Default)/NTSC switch by OSD Menu
Effective Pixel		2560(H)x1920(V) 5MP, 4:3 2560(H)x1440(V) 4MP, 16:9 5MP: AHD TVI 4MP: AHD TVI CVI
Illumination		0.05Lux@(F1.2,AGC ON)，0LUX with IR
Shutter		AUTO
D/N		EXT（Default）/ AUTO / COLOR / B&W
Synchronously		Internal
FPS		5MP@ 20fps / 15fps 4MP@ 30fps / 25fps / 15fps
Video output		AHD / CVI / TVI / Analog Coaxial High-definition
OSD Menu
Exposure	Shutter / AGC / Brightness
WB	ATW / MWB
D/N mode	External Switch / Color / B&W
Adjustment	Sharpness / LCD / LSC / Output mode
Exit	Save & exit / Reset / Not saved
Language	CHN1 / English
General
Operation temperature			-20°C to 60°C
Working humidity			Relative humidity less than90%
Power			DC12V(±20%) - 65mA

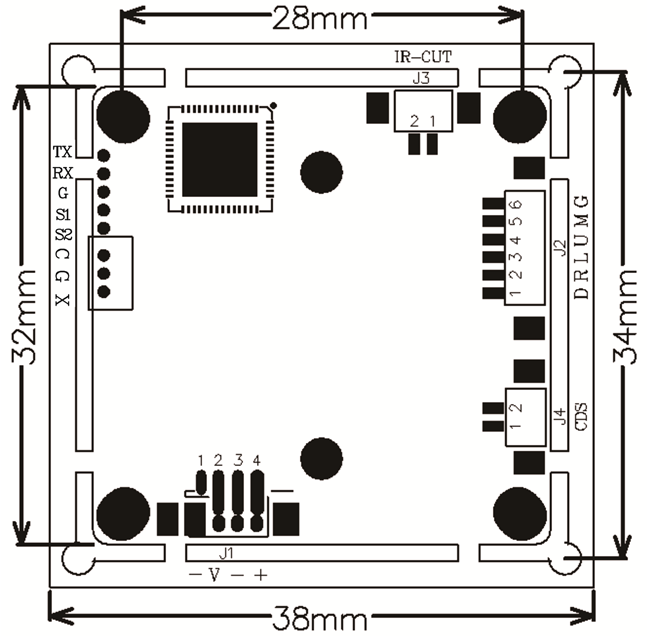

Size			38*38(mm)


OSD Switch: Default signal is AHD,switch from OSD Menu.

UP:AHD DOWN:CVI LEFT:TVI RIGHT:CVBS（Press about 5 second）.

System Switch：PAL/NTSC directly from OSD Menu

OSD Menu

1	EXPOSURE	SHUTTER	1/25, 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000, AUTO
		AGC	0-15
		BRIGHTNESS	1-100
		D-WDR	AUTO / OFF / ON
		D-WDR	ON	LEVEL	0-8
		RETURN	RET / SAVE&END
2	BACKLIGHT	OFF
		BLC	LEVEL	LOW / MIDDLE / HIGH
			AREA
			DEFAULT
			RETURN	RET / SAVE&END
		HSBLC	SELECT	AREA1 / AREA2 / AREA3 / AREA4
			DISPLAY	ON / OFF
			BLACK MASK	ON / OFF
			LEVEL	0-100
			MODE	ALL DAY
			MODE	NIGHT	AGC LEVEL	0-255
			DEFAULT
			RETURN	RET / SAVE&END
3	WHITE BAL	ATW
		AWC-SET
		INDOOR
		OUTDOOR
		MANUL	BLUE	0-100
		MANUL	RED	0-100
4	DAY&NIGHT	EXT	D→N(DELAY)	0-60
		EXT	N→D(DELAY)	0-60
		AUTO	D→N(AGC)	0-255
			D→N(DELAY)	0-60
			N→D(AGC)	0-255
			N→D(DELAY)	0-60
		COLOR
		B / W	BURST	OFF / ON
			IR SMART	OFF
				ON	LEVEL	0-15
				ON	AREA
			IR PWM	1-100
5	NR	2DNR	MIDDLE / HIGH / OFF / LOW
5	NR	RETURN	RET / SAVE&END
		MIRROR	OFF / MIRROR / V-FLIP / ROTATE
		DPC	LIVE DPC	ON	AGC LEVEL	0-255
				ON	LEVEL	0-100
				OFF
			WHITE DPC	ON	POS / SIZE
					START
					DPC VIEW	OFF / ON
					LEVEL	0-60
					AGC	0-14
					SENS-UP	X2, X4, X6, X8, X10, X15, X20, X25, X30
				OFF
			BLACK DCP	ON	POS / SIZE
					START
					DPC VIEW	OFF / ON
					LEVEL	0-100
				OFF
		LANGUAGE	CHN1 / CHN2 / GER / FRA / ITA / SPA / POL / RUS / POR / NED / TUR / JPN / / ENG
		RETURN	RET / SAVE&END
7	ADJUST	SHARPNESS	AUTO	LEVEL	0-10
				START AGC	0-255
				END AGC	0-255
			OFF
		MONITOR	LCD	GAMMA	USER / 0.45 / 0.50 / 0.55 / 0.6 / 0.65 / 0.7 / 0.75 / 0.8 / 0.85 / 0.9 / 0.95 / 1.0
				BLUE GAIN	0-100
				RED GAIN	0-100
			CRT	BLACK LEVEL	0-60
				BLUE GAIN	0-100
				RED GAIN	0-100
		LSC	OFF / ON
		OUTPUT MODE	FORMAT	AHD
			VIDEO.OUT	PAL / NTSC
			NRT	OFF / ON
			RETURN	RET / SAVE&END
8	EXIT	SAVE&END
		RESET
		NOT SAVE

Shipping

Quantity:

Ship to:

Remark:
For orders with a high total amount, please choose DHL, EMS other than Airmail, ePacket.
