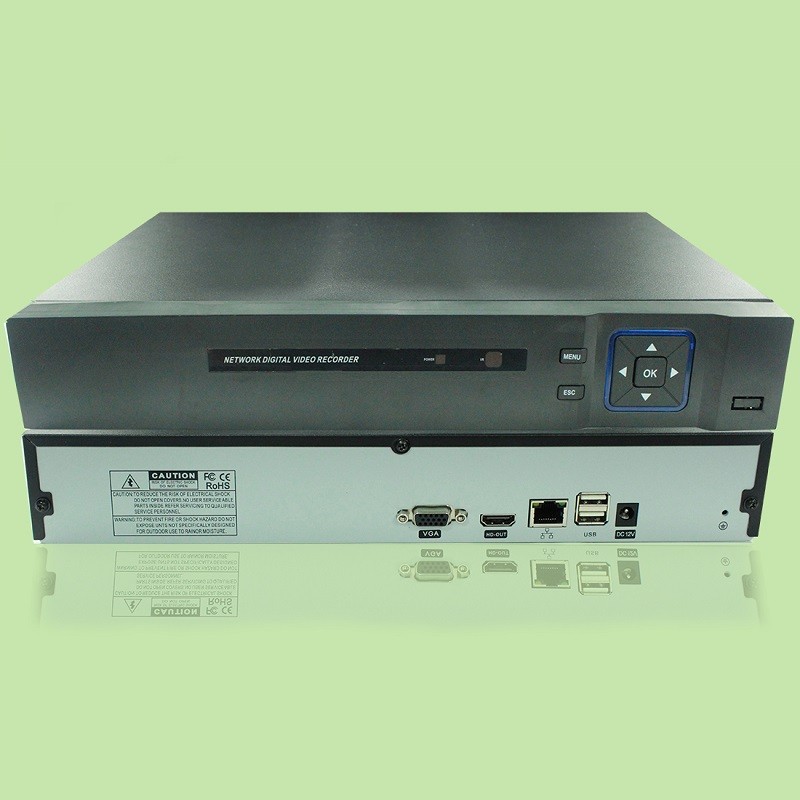

25 channel 2 Disks Embedded NVR
Embedded LINUX design, dual core DSP, pure hardware decode, watchdog, hard disk storage, HDMI show, IP network video access.
A9+DSP(Hi3535) dual core,1GHz,16MB FLASH,4G DDR3
HD IPC access, each channel support dual stream access, support auto search,add,recording,preview and without debugging
25 channels 720P/25 channels 960P/25 channels 1080P,16 channels 4MP
Support H.264 ultralow code rate access support over length cable access IPC(private protocol)
1channel HDMI output,1 channel VGA output, support display on the same screen
Support multi pictures division support 1920× 1080,1280× 1024,1024× 768 resolution output show
1/4/8 pictures real time preview support Seetong client preview,APP preview and seconds connection
NVR local recording playback support 4 channels 2MP Seetong client recording playback support 4 channels.
2*SATAII interfaces,1* hard disk power interface
Support 3.5 inch SATA II hard disk, support 500GB~8TB capacity(recommend SV35 hard disk),support recording storage and H.264 recording, support recording storage, H.264 recording, local recording playback and remote control playback. Video recording: 720P/960P/1080P/4MP
Support 10/100/1000M self-adaption
support 16pcs remote client visit, support TCP/IP,DHCP/NTP/SMTP/P2P/ONVIF and so on protocols
2 * USB2.0 interfaces
1* power indicator light,7* buttons
1*USB2.0 composite interfaces 1*5V power indicator interface 1* buzzer interface,1*power switch,1* audio input and output,1*RS485 ,support joystick keyboard control of PELCO(P/D) protocol.
Support preview/recording/transmit/remote service, support alarm linkage, support Seetong client remote control software support route traversing service, provide complete SDK packs(compatible with TOPSEE&rsquo s SDK)
-10° C~+55° C
DC +12V/4A power input,power consumption &le 3W(No disk),baremetal 325*242*54mm (W*D*H),net weight 1085g
Video recording channels or days explain :4 channel 60 days with 1* 4T HDD, 8 channel 30 days with 1*4T HDD,8 channel 60 days with 1*8T HDD, 16 channel 30 days with 1*8T HDD, 25 channel 19 days with 1*8T HDD
