Specification

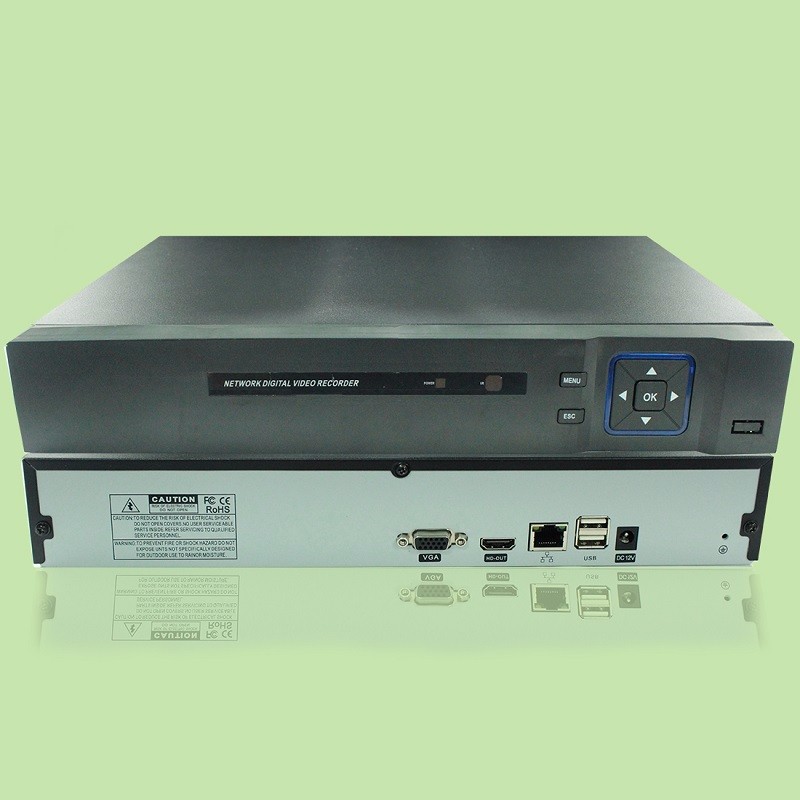

TS9236Q

36 channel 2 Disks Embedded NVR

1

System  Structure

Embedded LINUX design, dual core DSP, pure hardware decode, watchdog, hard disk storage, HDMI show, IP network video access.

A9+DSP(ARM A9) dual core,1GHz, 16MB FLASH,4G DDR3

2

Video Input

HD  IPC access, each channel support dual stream access, support auto search,add,recording,preview and without debugging

36 channels 720P/36 channels 960P/36 channels 1080P,25 channels 4MP

Support H.264 ultralow code rate access support over length cable access IPC(private protocol)

3

Video Output

1channel HDMI outpu,1channe VGA output, support multi pictures display at the same time,support1920&times 1080,1280&times 1024,1024&times 768 resolution show

1/4/8/16/25/36 pictures real time preview support Seetong client preview,APP preview and seconds connection

NVR local recording playback support 4 channels 2MP,1 channel 4MP Seetong client recording playback support 4 channels.

4

Recording Capacity

2*SATAII interfaces,1* hard disk power interface

Support 3.5 inch SATA II hard disk, support 500GB~8TB capacity(recommend SV35 hard disk),support recording storage and H.264 recording, support recording storage, H.264 recording, local recording playback and remote control playback. Video recording: 720P/960P/1080P/4MP

5

Network Interface

Support 10/100/1000M self-adaption

support 16pcs remote client visit, support TCP/IP,DHCP/NTP/SMTP/P2P/ONVIF and so on protocols

6

Peripheral Interface

2 * USB2.0 interfaces

7

Front Panel

1*power indicator light,7*buttons

8

Optional Functions

1*USB2.0 composite interfaces 1*5V power indicator interface 1* buzzer interface,1*power switch,1* audio input and output,1*RS485 ,support joystick keyboard control of PELCO(P/D) protocol.

9

Business Functions

Support preview/recording/transmit/remote service, support alarm linkage, support Seetong client remote control software support route traversing service, provide complete SDK packs(compatible with TOPSEE&rsquo s SDK)

10

Working Temperature

-10&deg C~ + 55&deg C

11

Working Humidity

10%~90%

12

Others

DC +12V/4A power input interface,power consumption &le 3W(No disk),baremetal 325*242*54mm (W*D*H),net weight 1085g
