Specification

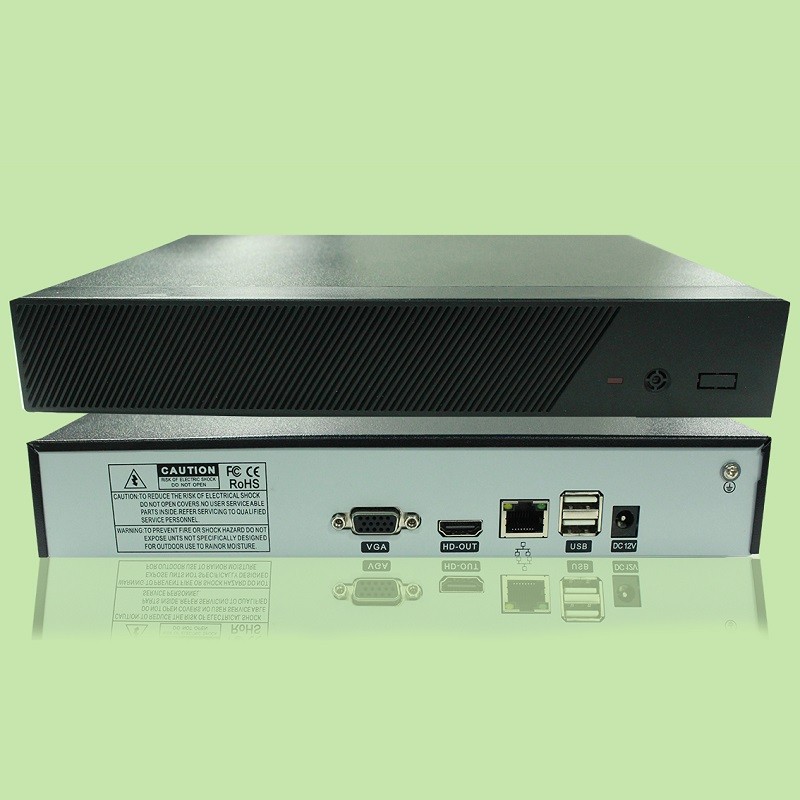

TS9108Q

8 Channel 1 Disk  Embedded NVR

1

System  Structure

Embedded LINUX design, dual core DSP, pure hardware decode, watchdog, hard disk storage, HDMI show, IP network video access.

A9+DSP,660MHz(ARM Cortex A9),16M FLASH,2G DDR3

2

Video Input

HD  IPC access, each channel support dual stream access, support auto search,add,recording,preview and without debugging

8 channels 720P/8 channels 960P/8 channels 1080P

Support H.264 ultralow code rate access support over length cable access IPC(private protocol

3

Video Output

1channel HDMI output,1 channel VGA output, support display on the same screen

Support multi pictures division support 1920×1080,1280×1024,1024×768 resolution output show

1/4/8 pictures real time preview support Seetong client preview,APP preview and seconds connection

NVR local recording playback support 4 channels 2MP Seetong client recording playback support 4 channels.

4

Video Capacity

1*SATA II hard disk interface, support 3.5 inch SATA II hard disk, support 500GB~8TB capacity(recommend SV35 hard disk),support recording storage,H.264 recording, local recording playback and remote control playback. Video recording: 720P/960P/1080P

5

Network Interface

1*RJ45 Ethernet interface, support 10/100M self-adaption support 16pcs remote client visit, support TCP/IP,DHCP/NTP/SMTP/P2P/ONVIF and so on protocols

6

Peripheral Interface

2*USB2.0 interface

7

Optional Interface

1*USB2.0 composite interfaces 1*5V power indicator interface 1* buzzer interface front panel key

8

Business Functions

Support preview/recording/transmit/remote service, support alarm linkage, support Seetong client remote control software support route traversing service, provide complete SDK packs(compatible with TOPSEE’s SDK)

9

Working Temperature

-10°C~+55°C

10

Working Humidity

10%~90%

11

Others

DC +12V/2A power input,power consumption≤2.7W(No disk),baremetal 255*215*44mm (W*D*H),net weight 620g
