LF622-CS-5MP-F1.6-D 6-22mm 5MP 1/2.5" CS Mount F1.6 Manual Zoom CCTV Camera Lens

SKU:

LF622-CS-5MP-F1.6-D

Category: 1/2.5" Lens 5MP Lens Varifocal CS/C Lens 6-22mm 1/2.5"

$20.94

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $16.91 - $20.94

Effective Pixels: 5MP

Aperture: F1.6

Bottom Group

Description

Model:					LF622-CS-5MP-F1.5-D
Parameter of Lens
Pixel					5MP
Image format					1/2.5"
Focal length					6-22mm
Aperture					F1.6
Mount					CS
Field Angle D×H×V(°)				"	1/2.5		1/3		1/4
				°	6mm	22mm	6mm	22mm	6mm	22mm
				D	58	20.4	46.5	18	34.5	12.6
				H	46.4	16.3	37.2	14.4	27.6	10.1
				V	34.8	12.2	27.9	11.4	22.5	7.6
Optical Distortion					-0.61~-15.6%(1/2.5")
M.O.D.					0.3m

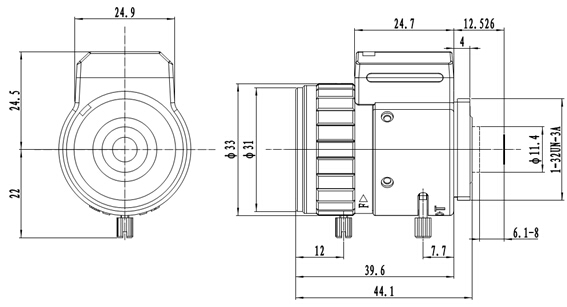

Dimension					33x44.1mm
Weight
Flange Back focal length					12.5mm
Back focal length					6.4mm
MBF					6.1~8mm
IR Correction					Yes
Operation		Iris			Fixed
		Focus			Manual
		Zoom			Manual
Operating temperature					-20°C~+60°C
Size

Size tolerance(mm):		0-10±0.05		10-30±0.10			30-120±0.20
Angle tolerance					±2°
