LF6-M12-5MP-F12 Night Vision F1.2 6mm 5MP 1/1.8" M12 Mount starlight night vision Security CCTV Camera Lens

LF8-M16-5MP-F1.0 Night Vision F1.05 8mm 5MP 1/1.8" M16 Mount starlight night vision Security CCTV Camera Lens

LF2.9-M12-5MP-F1.8 2.9mm focal length 1/2.7" F1.8 M12 HFOV 120 degree lens for IMX307 IMX327 IMX290 IMX291 OS05A10

LF6-M12-5MP-F12 Night Vision F1.2 6mm 5MP 1/1.8" M12 Mount starlight night vision Security CCTV Camera Lens

LF6-M12-5MP-F12 Night Vision F1.2 6mm 5MP 1/1.8" M12 Mount starlight night vision Security CCTV Camera Lens

SKU:

LF6-M12-5MP-F12

Category: Lens 6mm M12 F1.2 Starlight Lens

$8.80

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $7.80 - $8.80

Sensor Optical Format: 1/1.8"

Effective Pixels: 5MP

Aperture: F1.2

Focal Length: 6mm

Bottom Group

Description

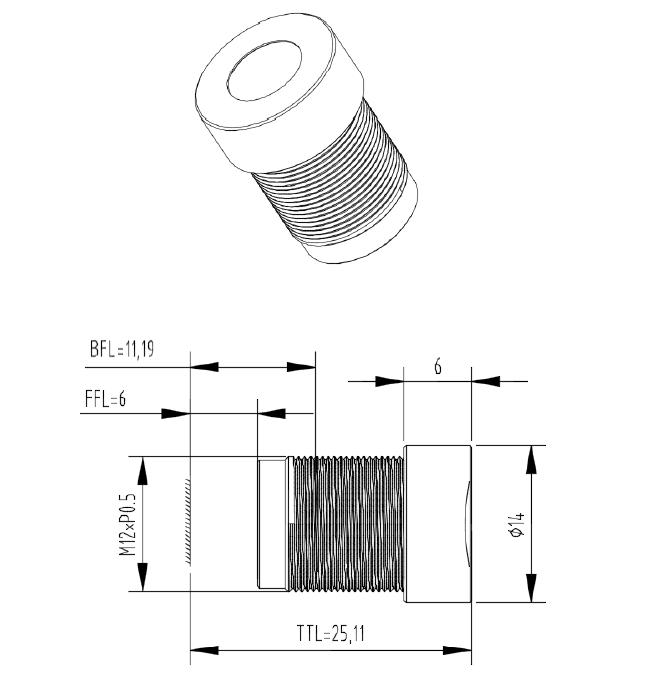

Number	item		specifications
1	Aperture (F/NO)		F1.2 +/- 5%
2	Focal length		6.0 mm +/- 5%
3	TTL		25.11 mm +/- 0.2 mm
4	BFL		11.19 mm +/- 0.2 mm
5	MBF		6.0 mm +/- 0.2 mm
6	Image circle		Φ9 mm (MAX)
7	FOV	D	H	V
	1/1.8"	72°	60°	31.7°
	1/2"	63.3°	54°	29°
8	Optical Distortion		-11.14%
9	Relative illumination		53%
10	CRA		10.1°
11	Spectral Transmission		440~680nm T>80%
12	MOD		0.2m
13	Lens structure		5G
14	Mount		M12 *P0.5
15	Operating Temperature		-40 ~ +80°C

FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.
