LF6-M12-F1.0 Night Vision F1.0 6mm 5MP 1/2.7" M12 Mount Fixed Security CCTV Camera Lens

SKU:

LF6-M12-F1.0-5MP

Category: Lens Monofocal Lens M12 1/2.7" Lens F1.0 M12 Starlight Lens 6mm M12

$6.88

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $6.26 - $6.88

Sensor Optical Format: 1/2.7"

Effective Pixels: 5MP

Aperture: F1.0

Focal Length: 6mm

Bottom Group

Description

Model		LF6-M12-F1.0
Resolution		2MP / 5MP
Image format		1/2.7" 6.8mm(Max)
Focal length		6.0mm±5%
Aperture		F1.0±10%
Mount		M12
Field Angle D×H×V(°)	" °	1/2.7	1/2.8	1/2.9
	D	66.5	64.1	61.6
	H	57.2	55.2	29.2
	V	31.4	30.3	43.0
Optical Distortion		-36.8%	-33.8%	-31.0%
M.O.D.		0.2m

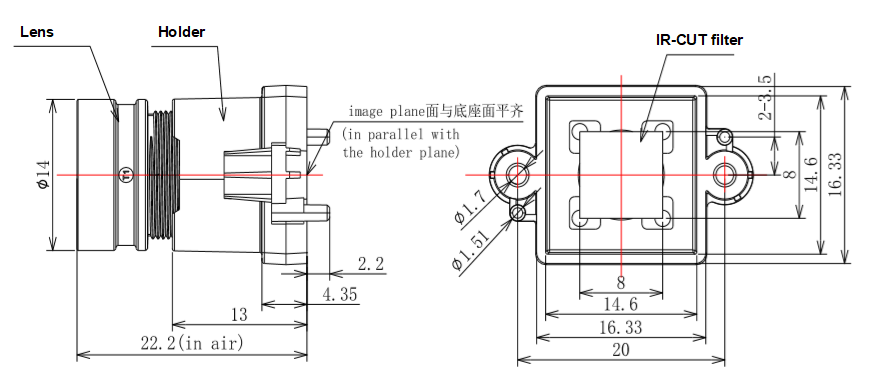

Dimension		Φ14x22.2mm
Weight		/
BFL		4.79±0.2mm (in air)
MBF		4.11±0.2mm (in air)
TTL		22.20±0.2 (in air)
Lens structure		3G+3P
Operation	Iris	Fixed
	Focus	/
	Zoom	/
Operating temperature		-20°C~+60°C
Size

Size tolerance(mm):	0-10±0.05		10-30±0.10	30-120±0.20
Angle tolerance		±2°

FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.
