LF5.5-M12N-10MP 1/2.8" 10MP 5.48mm F2.9 M12 Mount None distortion Camera Lens

LF8-M12N-12MP 1/1.8" 12MP 8mm F2.8 M12 Mount None distortion Camera Lens

LF5.5-M12N-10MP 1/2.8" 10MP 5.48mm F2.9 M12 Mount None distortion Camera Lens

SKU:

LF5.5-M12N-10MP

Category: Monofocal Lens M12 6mm M12 None Distortion Lens 1/2.8

$10.50

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $7.90 - $10.50

Effective Pixels: 10MP

Aperture: F2.8

Bottom Group

Description

Model			LF5.5-M12N-10MP
Parameter of Lens
Pixel			8MP
Image Format			1/1.8"
Focal Length			6mm
Aperture			F2.8
Mount			M12x0.5
Field Angle D×H×V(°)			1/2.8"
		D	61°
		H	55°
		V	32.5°
Optical Distortion			-2.7%
Dimension			Φ13.5x18.73mm
MOD			0.3m
MBF			6.22mm
CRA			<12°
Relative illumination			>37%
TTL			25mm
Operation	Iris		FIX
	Focus		/
	Zoom		/
construction			9G
Operating temperature			-20°C~+70°C

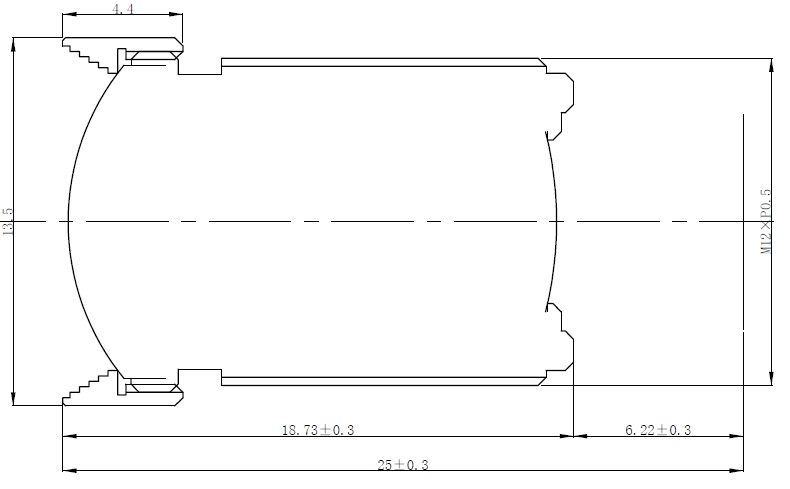

Size

Size tolerance(mm):	0-10±0.2	10-30±0.30		30-120±0.30
Angle tolerance			±2°

FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.
