6G structure.

Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Model:		LF3.6-M12-3MP-F2
Parameter of Lens
Pixel		3MP
Image Format		1/2″ (IMX385)
Image Circle		Φ8.0mm (Max)
Focal Length		3.6mm
Aperture		F2.0
Mount		M12x0.5
Field Angle DxHxV(°)	1/2"	116°x92°x64°
TV Distortion		<-10%
Relative Ill.		>60%
Chief Ray Angle		<13º
M.O.D.		0.1m~∞
Dimension		Φ16.0x17.08mm
Weight		6.3g
Back Focal Length		12.50mm
MBF		6.78mm
TTL		23.86mm
Lens Structure		6G
IR-Filter		T=50% & IR650nm±10nm
Operation	Iris	FIX
	Focus	/
	Zoom	/
Operating temperature		-20°C~+80°C

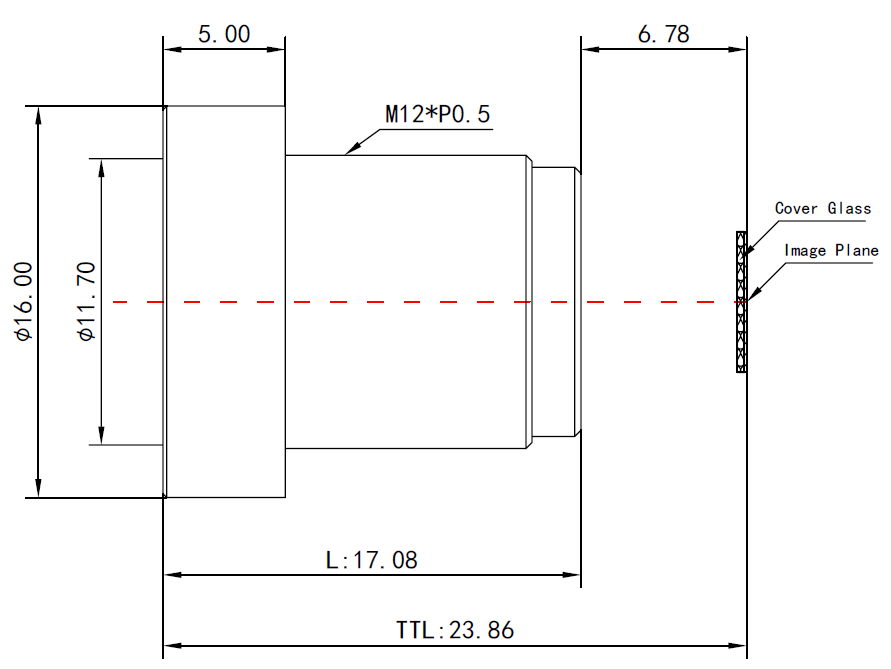

Size
Size tolerance(mm):	0-10±0.05	10-30±0.10
Angle tolerance		±2°
