IPCM-3516XS291-D29-AZ3015 1/2.8" 2MP 1080P Sony IMX291 + ARM926 2.7-13.5mm Auto Zoom Starlight Security CCTV HD Camera Module board

IPCM-3516XS291-D29-AZ3015 1/2.8" 2MP 1080P Sony IMX291 + ARM926 2.7-13.5mm Auto Zoom Starlight Security CCTV HD Camera Module board

SKU:

IPCM-3516XS291-D29-AZ3015

Category: Auto Zoom IP Camera Module 2.7-13.5mm Auto Zoom Camera Module Starlight Camera Board Starlight IP Camera Board

Video Coding Format: H.264 H.265 Mjpeg

$56.95

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $51.65 - $56.95

Imaging Sensor: IMX291

Effective Pixels: 2MP

Bottom Group

Description

H.265/H.264 video compressing, high compression, stream control accurate, stable, support dual stream
1/2.8" SONY Starvis IMX291 CMOS Sensor, 2MP
4X Optics zoom, auto zoom function Built-in automatic day and night dual filter switching mechanism, with manual or automatic color toblack and other switching methods
support dual stream
Support network disconnect, motion detection, Video masking, intelligent out off focus alarm
Smart coding
Up to 4 ROI area,
abundant network protocol
D-WDR, 3D noise reduction
ONVIF2.4, GBT28181
Support CVBS output

Model	IPCM-3516XS291-D29-AZ3015
IP camera
Image sensor	1/2.8 inch 2MP Sony Starvis IMX291 CMOS
SOC	ARM926
Effective pixels	1920(H)x 1080(V)
Scan system	progressive
Electronic shutter	1/25s~1/10000s
Min illuminator	Color:0.001Lux@F1.2
S/N Ratio	≥50dB(AGC OFF)
IR Cut mode	ICR Switch
WDR	>80dB D-WDR
Noise reduction	3D
Video masking	Up to 4 area
Lens type	2MP 5X automatic zoom lens, 2.7-13.5mm
Video
Coding	H.265/H.264/MJPEG
Main stream	1080P(1920x1080),720P(1280*720)
Sub stream	D1(704x576)/VGA(640*480)/QVGA(320x240)
Video frame	1 ~ 25fps (50HZ) 1 ~ 30fps (60HZ)
Video bit ratio	32KB ~ 16Mbps, Support CBR/VBR
Picture setting	brightness, Contrast, saturation, sharpness, BLC AWB, AGC, AE areadjustable, support privacy masking OSD Image eversion90°/ 270°,ICR Switch auto or manual are optional
Smart function
Smart coding	Support low bit rate, low latency, enhanced coding of ROI area, up to 4 ROI area
Smart detection	Support intelligent masking detection ,intelligent out off focus detection
Smart control	Support smart control alarm open, alarm shut, fault clear, smart noise reduction
Network
Network interface	10M/100M
Network protocol	IPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPSP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Access standard	ONVIF/GB28181
Client user	Up to 8 user at same time
Smart phone	iphone, ipap, Android
General parameter
Power	DC 12V 1A (POE optional)
Consumption	2W(MAX)
Temperature, humidity	-10°C~55°C, 20-80%RH (Non coagulation)
Size	38X38X68mm

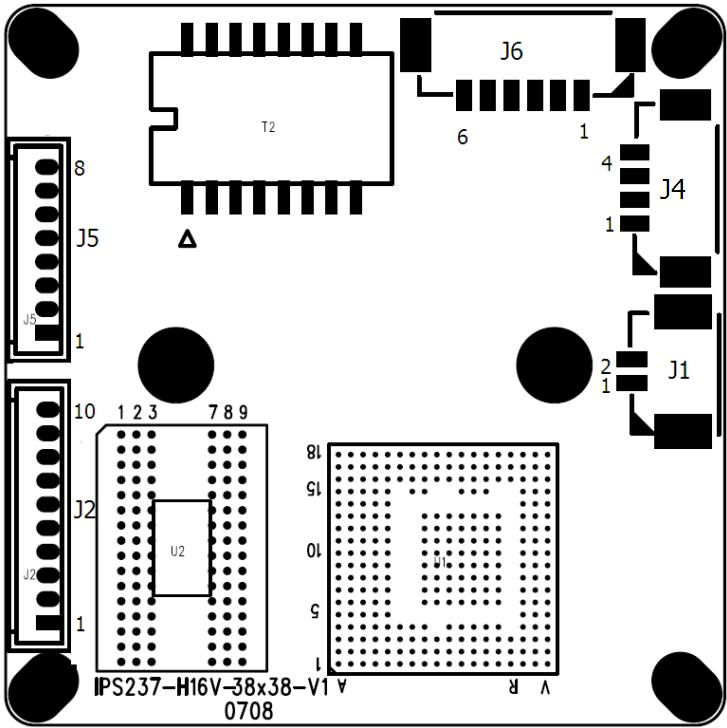

Interface

No.	Pin Defination	Pitch	Preview
JP4 Power interface		1.25mm
1	DC12V
2	Video GND
3	CVBS Signal Out
4	GND
J6 Network interface		1.25mm
1	RJ45_1 (TX+)
2	RJ45_2 (TX-)
3	RJ45_3 (RX+)
4	RJ45_6 (RX-)
5	Network connector light(Green)
6	Network status light(Yellow)
J1 IR-cut interface		1.25mm
1	IR-CUT control signal 12V-
2	IR-CUT control signal 12V+

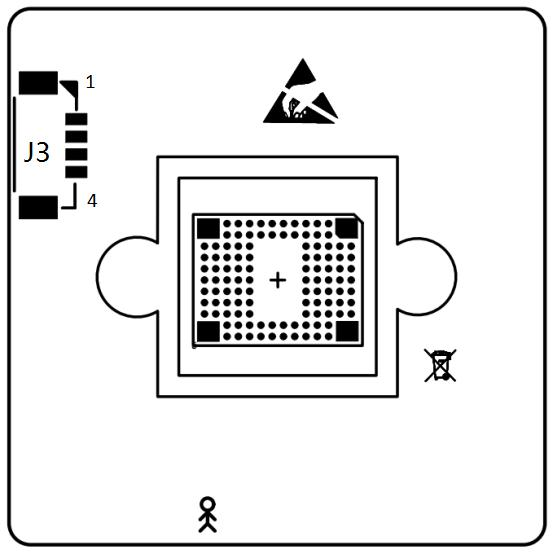

J3 LED Board interface		1.25mm
1	LED board 12V power out
2	GND
3	LED feedback signal (0.8V-12V)
4	Infrared light enable control
J2 Function interface		1.25mm
1	Audio in
2	Audio GND
3	Audio out
4	Reset
5	GND
6	USB_DP
7	USB_DM
8	5V power out
9	alarm out I/O(3.3V Level signal)
10	Alarm in

Compitable Accessories

Compatible Cable

CBB-OBP-POE-DC power tail cable for ip poe 48v camera module with buildin POE

From $4.50

CBB-EPA2 Ethernet DC power Audio tail cable for ip camera module

From $1.12

CBW-EP Waterproof Ethernet DC power tail cable for IP Camera module

From $0.59

CBW-EPA Waterproof Ethernet DC power Audio tail cable for IP Camera module

From $0.94

CBW-O-POE tail cable for ip poe 48v camera module

From $1.20

CBW-OBP-POE-DC power tail cable for ip poe 48v camera module with buildin POE module, Support POE / none POE + DC 12V power supply

From $3.60

Download

Supports for private Protocol of Xmeye and other popular vendor, and full range of H.264, H.265, POE NVR (one key add, Plug-and-play);

Supports iVMS4200, XMeye CMS monitoring platform software;

Supports ONVIF 2.4 protocol;

Supports GB28181 Protocol;

Supports sub IP 11.x.x.x and 192.168.1.88 by default;

Supports HTTP CGI API;

WebCms 3.2.0.46 .zip IE activeX plugin

pConfig_1.0.1.66.zip modify camera configurations, such as WiFi, Default Language, MJPEG, Default IP address. The configuration will be the default configuration when you restore the settings.

DeviceSearch.zip

iVMS-4200(v2.6.2.7).zip HikVision protocol support

Basic FAQ for IE Browser.pdf

Quick Guide for IE Browser.pdf

IE Browser User's Manual.pdf

For Windows:

iVMS-4200: https://hupuu.com/sites/default/files/document/iVMS-4200(v2.6.2.7).zip

Support P2P remote monitor.
Support IE preview, Record(store to PC).

FAQ

What is default IP address, user and password?
Default IP:
192.168.1.88 for wired Ethernet;
192.168.1.160 for wifi;
For bulk operation, you can use sub ip 11.0.0.1 to find, config and upgrade as many cameras as you can.

Default user: admin
Default Password: admin
Does the camera support motion detect?
Yes, it support motion detect, and can send email with snap to you. Save snap image and video to FTP.
Note: by default, sanp image and video save to TF storage, if you don't have TF storage, it will also works for snap and video. The snapped image and video will save to RAM first, then send to email, upload to FTP server. As RAM resource is limited, the video will split into pieces about 1MB per file.
It's better to use TF extension board.
Is IR-CUT dual filter switch necessary?
IR-CUT dual filter switch has two filters, one is IR CUT filter not allow IR light to pass (normally >650nm wavelength), the other is AR filter that all light can pass.
It depends on working conditions, for night using only, no need to use IR-CUT dual filter switch.
For day and night all day using, you should use IR-CUT dual filter switch.
For day using, or some lens with very short back focal length, can paste IR-CUT filter glass to sensor or the end of lens.
