ATCB-2475HV4689 1/3" OV4689 NVP2475 4MP AHD Analog CCTV Security Camera Module BOARD

Image Sensor :1/3" Color Sony CMOS
Model: NVP2475H+OV4689
Color CMOS module, 4MP
Excellent Performance ,Stable Quality
4MP Image Quuality, Effective Pixels up to 2688x1520
OSD Function, PAL/NTSC, Support UTC /OSD
32cmx32cm, and 38x38cm

SKU	ATCB-2475HV4689
Sensor	1/3" OV4689 + NVP2475H
Effective Pixel	2688(H) x 1520(V)
Resolution	4MP
Pixel Size	2.0um x 2.0um
Shutter Speed	1/30(1/25) ~ 1/10000 Sec
White Balance	Auto/User/Push/Hold
Day/Night	Color/B&W/Auto/EXT
Backlight Compensation	0 ~ 16
Auto Gain Control	1 ~ 5
HLC	OFF / ON
Mirror/Flip	OFF / ON
S/N Radio	>38.3dB
Privacy Masking	AREA1 / AREA2
Video Output	AHD/CVBS(ANALOG)
OSD Language	ENGLISH / JAP / TUR / NED / POR / RUS / POL / SPA / ITA / FRA / GER / CHN2 / CHN1
Operation Temperature	-20℃ to 60℃
Working Humidity	Relative humidity less than 90 %
Transmission Distance	Up to 500meters
Power	DC12V 70MA, without LED
PCB	1.2T
Size	3232/3838（mm）* 10mm

OSD MENU

1.EXPOSURE	1.SHUTTER	AUTO
	2.AGC	……⎟…………… 12
	3.BRIGHTNESS	………………⎟… 32
	4.D-WDR	AUTO / OFF
	5.RETURN	RET
2.BACKLIGHT	OFF	BLC	1.LEVEL	LOW / MIDDLE / HIGH
			2.AREA	POSITION
			3.DEFAULT	←
			4.RETURN	RET
		HSBLC	1.SELECT	AREA 4
			2.DISPLAY	ON
			3.BLACK MASK	ON
			4.LEVEL	………………⎟… 36
			5.MODE	ALL DAY
			6.DEFAULT	←
			7.RETURN	RET
3.WHITE BAL	ATW	1.AWC SEL	←
		2.INDOOR
		3.OUTDOOR
		4.MANUAL	←
4.DAY-NIGHT	AUTO	COLOR
		B/W	1.IR SMART OFF
			2.RETURN RET
		EXIT ←	1.D → N DELAY	……⎟…………… 3
			2.N → D DELAY	……⎟…………… 3
			3.RETURN RET
		AUTO	1.D → N AGC	……………⎟…… 128
			2.D → N DELAY	……⎟…………… 3
			3.N → D AGC	…………⎟……… 16
			4.N → D DELAY	……⎟…………… 3
			5.RETURN	RET
5.NR	1.2DNR	LOW / MIDDILE / HIGH
	2.RETURN	RET	←
6.SPECIAL	1.MIRROR	OFF
		ON
	2.DPC	1.LIVE DPC ON	1.AGC LEVEL	……………⎟…… 80
			2. LEVEL ON	…………⎟……… 10
			3.RETURN	RET
		2.WHITE DPC ON	1.POS / SIZE	←
			2.START	←
			3.DPC VIEW	OFF
			4. LEVEL	……………⎟…… 59
			5.AGC	…………⎟……… 14
			6.RETURN	RET
		3.BLACK DPC ON	1.POS / SIZE	←
			2.START	←
			3.DPC VIEW	OFF
			4. LEVEL	……………⎟…… 59
			5.AGC	…………⎟……… 14
			6.RETURN	RET
	3.LANGUAGE	ENGLISH / JAP / TUR / NED / POR /RUS /POL / SPA / ITA / FRA / GER / CHN2 / CHN1
	4.RETURN
7.ADJUST	1. SHARPNESS AUTO	1.LEVEL	…………⎟……… 5
		2.MONITOR	1.GAMMA	USER
			2.BLUE GAIN	……………⎟…… 80
			3.RED GAIN	……………⎟…… 80
			4. RETURN	RET
		3.END AGC	……………⎟…… 154
		4. RETURN	RET
	2.MONITOR
	3.LSC	ON / OFF
	4.OUTPUT MODE	1.FORMAT	AHD / CVBS
		2.VIDEO OUT	PAL / NTSC
		3. NRT	ON / OFF
		4. RETURN	RET
	5.RETURN	RET
8. EXIT	SAVE & END / RESET		←

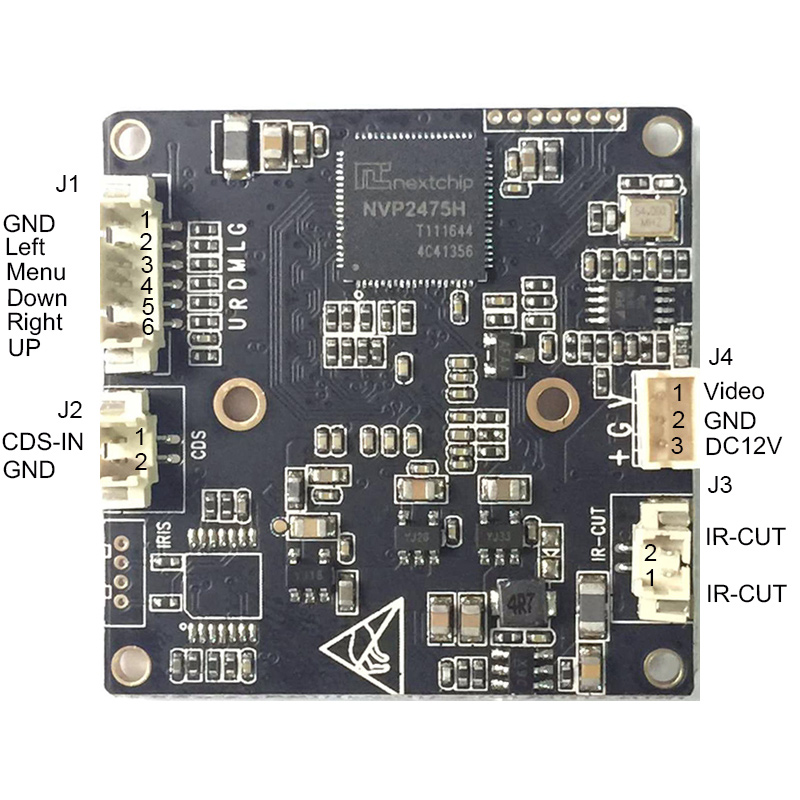

J1 6pin 1.25mm		J3 2pin 1.25mm		J4 3pin 1.5mm		J2 2pin 1.25mm
1	GND	1	IR-CUT1	1	VIDEO	1	CDS-IN
2	LEFT	2	IR-CUT2	2	GND	2	GND
3	ENTER			3	DC 12V
4	DOWN
5	RIGHT
6	UP

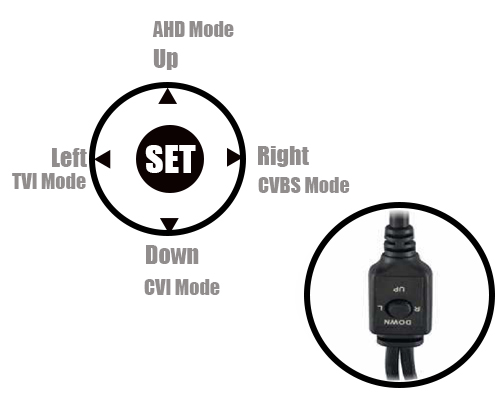

How to Switch AHD/TVI/CVI/CVBS mode?

AHD Mode is the default Mode，Press button in different direction for 5 seconds to be related signal !
You also can switch different mode via UTC (Coaxial Control from DVR Menu)

Up        AHD
Right    CVBS
Down    CVI
Left        TVI
