A4CB-8550DS323 1/2.9" Sony IMX323 FH8550D 1080P 2MP AHD TVI CVI Analog 4 in 1 CCTV Security Camera Module BOARD UTC

Empty

Total: $0.00

Hupuu Electronics

SKU:

A4CB-8550DS323

Category: AHD Camera Board

Video Coding Format: AHD Analog (CVBS) CVI TVI

$8.18

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $6.50 - $8.18

Imaging Sensor: IMX323

Effective Pixels: 2MP

Description

1/2.9" Sony IMX323 FH8550D 1080P 2MP AHD TVI CVI Analog 4 in 1 CCTV Security Camera Module BOARD

Use SONY IMX323 2mp low illumination CMOS,capture moving images

4 in 1 Coaxial high-definition output,Excellent performance, clear and bright picture

Lux:0.05Lux@(F1.2,AGC ON),0LUX with IR

Support IR-CUT,CDS external control ,D/N

Support OSD

Support DWDR

Adaptive Digital Noise Reduction，2D-DNR,3D-DNR

Support UTC (Optional)

Model Spec.	A4CB-8550D323
	2mp 4 in 1 Coaxial high-definition camera Module
Detail Specifications
Sensor		1/2.9＂　IMX323+FH8550D
System		PAL/NTSC
Effective Pixel		1920(H)x1080(V)
Illumination		0.05Lux@(F1.2,AGC ON)，0LUX with IR
Shutter		AUTO
D/N		EXT（Default）/AUTO/COLOR/B/W
Synchronously		Internal
FPS		1080P@25fps / 1080P@30fps
Video output		AHD/TVI/CVI/CVBS switch
OSD Menu
Exposure	BRIGHTNESS / EXPOSURE MODE / GAIN
BW	ATW/MWB
D/N MODE	Infrared/Internal AUTO/COLOR/B&W
Video Setting	Contrast/Sharpness/COLOR GAIN/DNR/Format/DWDR
Language	CHN1/ESPANOL/CHN2/ITALIANO/ENGLISH
Reset
Common
Operation Temperature			-20℃ to 60℃
Working Humidity			Relative humidity less than 90 %
Power			DC12V(±20%) - 70MA

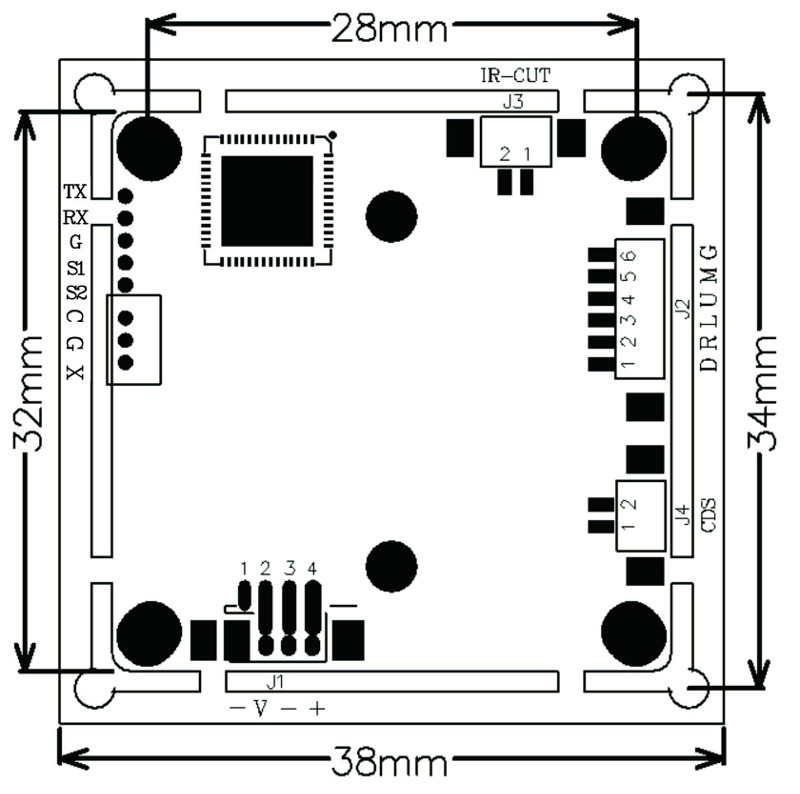

Size			3232/3838（mm）
