A4CB-8538M4603 4MP 1/3.2" GC4603 + FH8538M AHD CVI TVI in one Camera BOARD

Empty

Total: $0.00

Hupuu Electronics

SKU:

A4CB-8538G603

Category: AHD CVI TVI Analog 4 in 1

Video Coding Format: AHD Analog (CVBS) CVI TVI

$8.36

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $6.19 - $8.36

Imaging Sensor: GC4603

Effective Pixels: 4MP

Description

A3CB-8538M4603 4MP 1/3.2" GC4603 + FH8538M AHD CVI TVI CVBS in one Camera BOARD

l Use GC4603 4MP CMOS,captured moving images.

l Support 3 in 1 Coaxial high-definition output, with excellent performance, clear and bright picture

l Lux: 0.1Lux@(F1.2,AGC ON),0LUX with IR

l Support IR-CUT,CDS external control , D/N,

l Support OSD and Customization

l Adaptive Digital Noise Reduction,2D-DNR

l Support UTC

Model	A4CB-8538M4603
	4MP 3 in 1 coaxial high-definition CCTV camera Module
Detailed Specifications
Sensor		1/3.2"　GC4603+FH8538M
System		PAL(Default)/NTSC
Effective pixels		2576(H)x1456(V)
Illumination		0.1Lux@(F1.2,AGC ON)，0LUX with IR
Shutter		AUTO
D/N		EXT（Default）/COLOR/B/W
Synchronously		Internal
FPS		4MP@25fps / 4MP@30fps
Video output		AHD(Default)/TVI/CVI switch
OSD menu
Exposure		BRIGHTNESS / EXPOSURE MODE / GAIN
BW		ATW/MWB
D/N MODE		Infrared/COLOR/B&W
Video Setting		Contrast/Sharpness/COLOR GAIN/DNR
Language		CHINESE/ENGLISH
Reset
Common
Operation Temperature		-20°C to 60°C
Operation humidity		Relative humidity less than 90 %
Power		DC12V(±20%) - 70MA

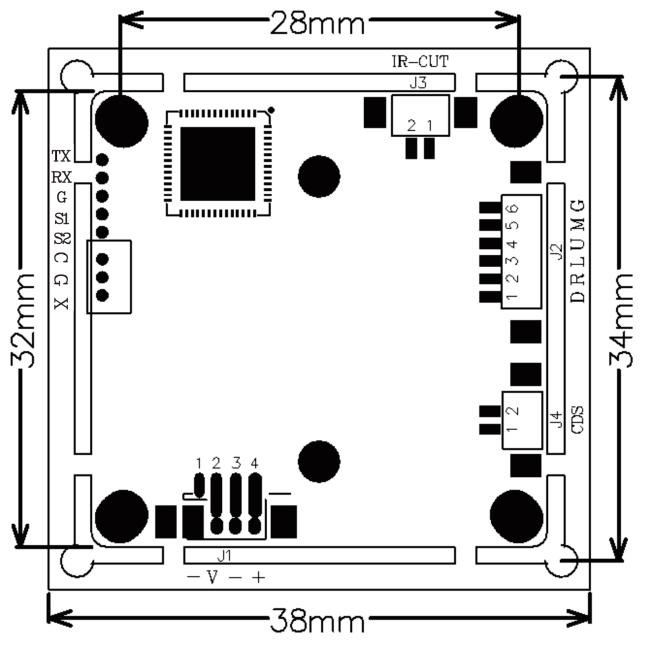

Dimension		3232/3838（mm）

OSD Switch: Default signal is AHD, switch from OSD Menu.

System Switch: PAL/NTSC directly from OSD Menu
