10MP HD USB camera board with 1/2.3" MT9J003 Sensor RAW BMP JPEG PNG TWAIN DirectShow ROI Halcon

Empty

Total: $0.00

Hupuu Electronics

SKU:

UCM-10CH

Category: Camera Board USB UVC Camera Module

$255.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $219.00 - $255.00

Effective Pixels: 10MP

Description

Features

10MP HD USB camera Module with 1/2.3" MT9J003 Sensor

Camera with 32MB cache, image transfer speed and stability, faster than ordinary USB2.0 camera 34%;
All kinds of light source environment have good color reproduction and flower seedling permeability;
Standard 39*39 module size;
Very low power consumption;
Support TWAIN and DirectShow interface;
Support high-peed preview for ROI and full-resolution photo;
Provide development kit, SDK supports VC, VB, C# development language, support Halcon, LabView, Matlab, OpenCV and other image processing software and development platform.

Model	UCM-10CH
Sensor Model	MT9J003
Sensor Size	1/2.3" CMOS Color
Max Resolution	3664 x 2748 (10MP)
Resolution & FPS	3664 x 2748 (Full resolution): 3.9 FPS
	2592 x 1944：7.7 FPS
	1920 x 1080 (ROI): 18.2FPS
	1600 x 1200 (bin): 14.9 FPS
	1280 x 960: 20.9 FPS
	1280 x 720 (BIN): 23.1 FPS
	1024 x 768: 25.3 FPS
	800 x 600: 26.8 FPS
	ANY ROI
Pixels Size	1.67μm x 1.67μm
Scan Type	Progressive Scan
Shutter Scan	Electronic Rolling Shutter
Exposure Time	0.071ms-3000 ms
Data Format	8bit Raw, 24bit BMP
Sensitivity	0.31V/Lux-sec

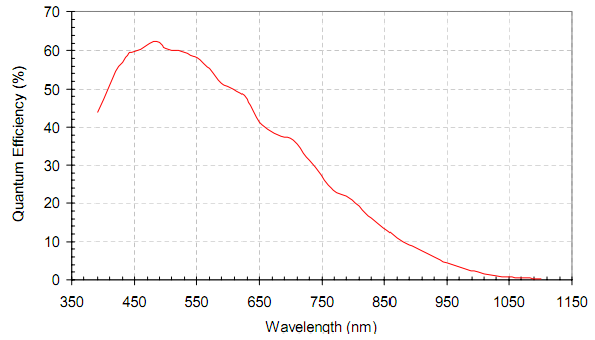

Spectral Response	380nm-1000nm
SNR	34dB
Wide Dynamic Range	65.2dB
Definition	>1500 Lines
Exposure Mode	Auto/Manual/Area
White Balance	Manual/One-Time/Auto/Area
Firmware Update	Remote Update
Camera ID	Users-Defined
Image Format	RAW / BMP / JPEG / PNG
Image Processing	Image Size, Lightness, Exposure time; Gain; GAMMA; Contrast; Black Level; Sharpness; Noise Reduction; 3D Noise Reduction; RGB Gain; Saturation
System	Windows XP(32bit); Win7/8/8.1/10(32/64bit) (Better Win7or higher)
Software Interface	TWAIN，DirectShow
Interface	USB2.0 Type-B，480Mb/s
LED Guide	Power on during Stand-by; Flashing during working
Power	USB5V，Working:1.2W, Stand-by 0.5W
Operating Conditions	Temperature：0℃ ~ 50℃；Humidity：10% - 90%RH（No Condensation）
Storage Conditions	Temperature：-20℃ ~ 60℃； Humidity：10% - 60%RH
Size	39 x 39mm
Weight	18g
