Description

Features

5MP HD USB camera board with 1/2.5" MT9T006 Sensor

Camera with 32MB cache, image transfer speed and stability, faster than ordinary USB2.0 camera 34%;
All kinds of light source environment have good color reproduction and flower seedling permeability;

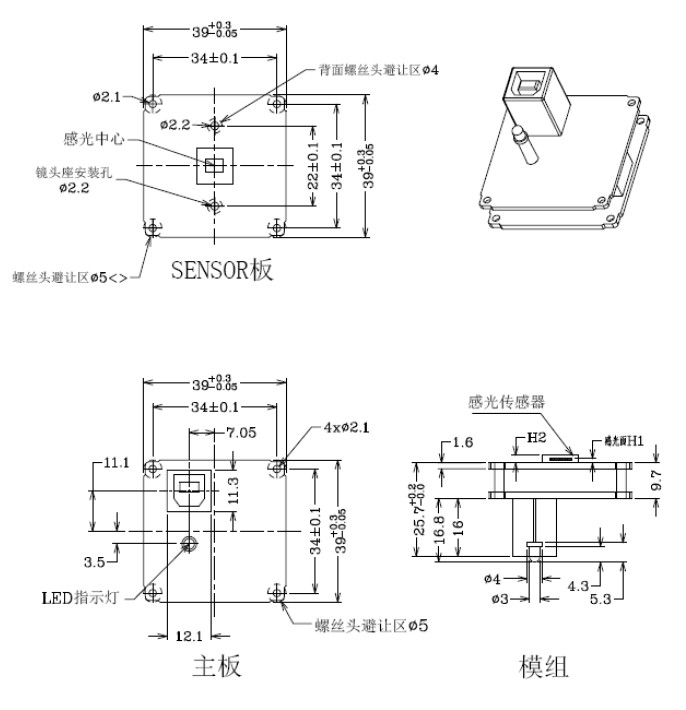

Standard 39*39 module size;
Very low power consumption;
Support TWAIN and DirectShow interface;
Support high-peed preview for ROI and full-resolution photo;
Provide development kit, SDK supports VC, VB, C# development language, support Halcon, LabView, Matlab, OpenCV and other image processing software and development platform.

Model	UCM-5CH
Sensor Model	MT9P006
Sensor Size	1/2.5" CMOS Color
Max Resolution	2592×1944（5M）
Resolution&FPS	2592×1944：7FPS
	2048×1536（ROI）：10.4 FPS
	1920×1080（ROI）：15.4FPS
	1280×960（SUM）：17.2 FPS
	1280×960（BIN）：17.2 FPS
	640×480（SUM）：26.7 FPS
	640×480（BIN）：26.7 FPS
	ANY ROI
Pixels Size	2.2μm×2.2μm
Scan Type	Progressive Scan
Shutter Scan	Electronic Rolling Shutter
Exposure Time	0.059ms-3000 ms
Data Format	8bit Raw, 24bit BMP
Sensitivity	1.76V/Lux-sec(550nm)

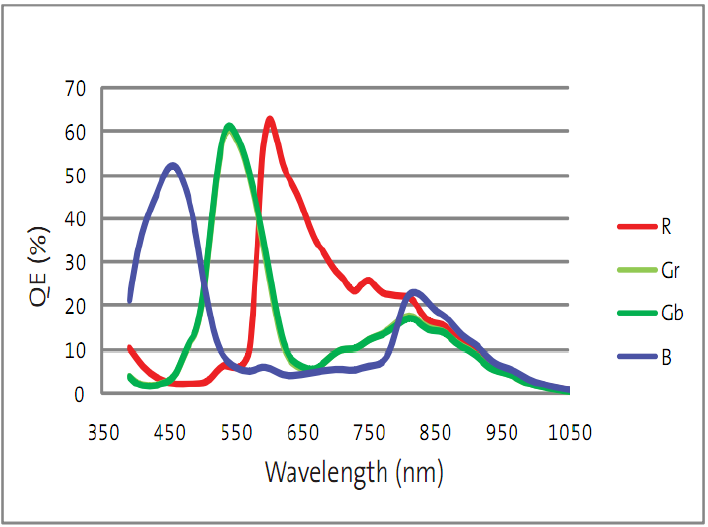

Spectral Response	380nm-650nm(Filter Included)
SNR	38.5dB
Wide Dynamic Range	67.7dB
Definition	>1200 Lines
Exposure Mode	Auto/Manual/Area
White Balance	Manual/One-Time/Area
Firmware Update	Remote Update
Camera ID	Users-Defined
Image Format	RAW / BMP / JPG / PNG
Image Processing	Image Size,Lightness,Exposure time;Gain;GAMMA;Contrast;Black Level;Sharpness;Noise Reduction;3D Noise Reduction；RGB Gain；Saturation
System	Windows XP(32bit); Win7/8/8.1/10(32/64bit) （Better Win7or higher）
Software Interface	TWAIN，DirectShow
Interface	USB2.0 Type-B，480Mb/s
LED Guide	Power on during Stand-by ;Flashing during working
Power	USB5V，Working:1W，Stand-by0.45W
Operating Conditions	Temperature：0℃ ~ 50℃；Humidity：10% - 90%RH（No Condensation）
Storage Conditions	Temperature：-20℃ ~ 60℃； Humidity：10% - 60%RH
Lens Mount	C Mount
Size	80×87.7×38mm
Weight	Approx.350g
