UF5283-5519 1/3" GC4083 2560x1440 1080P USB UVC Camera board H.264 MJPEG YUY2

Empty

Total: $0.00

Hupuu Electronics

SKU:

UF5283-5519

Category: Camera Board USB UVC Camera Module

$8.20

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $7.80 - $8.20

Sensor Optical Format: 1/3"

Imaging Sensor: GC4083

Effective Pixels: 4MP

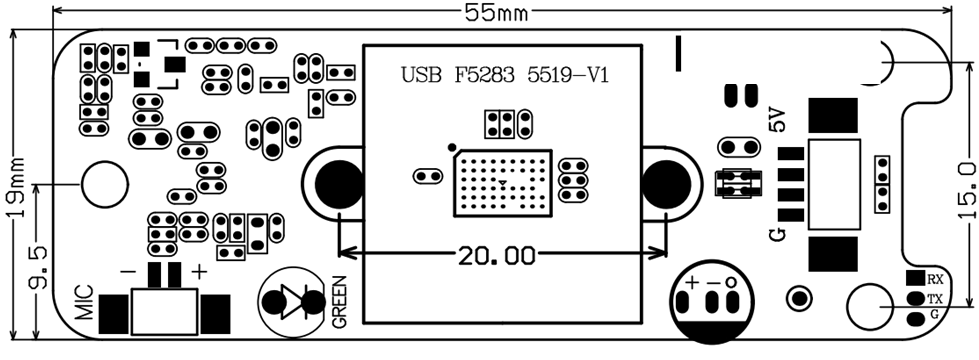

Hole Distance: 20mm

Description

Features

UF5283 1/3" GC4083 2560x1440 1080P USB UVC Camera board H.264 MJPEG YUY2

1. Using MJPEG, YUY2, H.264 encoding

2. 1/3.02" 4MP 2560*1440 resulotion GC4083 CMOS

3. Support UVC protocol, free driver, plug and play

5. Support linux, Android and other embedded systems, support windows system

6. Optional support MIC.

Product number	UF5283-5519
Sensor	1/3.02" GC4083 4MP
MAX effective pixels	2560 * 1440
Sensor Size	1/3 inch
Output parameters	Video format	Rosolution	Frame rate
	MJPG	2560 * 1440	30fps
	MJPG	1920 * 1080	30fps
	MJPG	1280 * 720	30fps
	MJPG	640 * 480	30fps
	H.264	2560 * 1440	30fps
	H.264	1920 * 1080	30fps
	H.264	1280 * 720	30fps
	H.264	640 * 480	30fps
	YUY2	1280*720	30fps
	YUY2	640 * 480	30fps
Min illumination	0.05Lux@F1.2 （AGC ON)
Interface type	USB2.0
Audio frequency	Optional
Storage temperature	-20°C to 70°C
working temperature	0°C to 50°C
USB Wire rod	Customized
System support	WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
