1/2.8" Sony IMX291 + EN771T 2MP 1080P TVI HD-SDI EX-SDI Analog starvis Starlight Security CCTV HD camera module board

SKU:

HS771291-TSC-CBADK

Category: SDI Camera Board EX-SDI Camera Board Starlight Camera Board Starlight SDI Camera Board

Video Coding Format: Analog (CVBS) EX-SDI HD-SDI TVI

Starlight

$39.25

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $33.90 - $39.25

Sensor Optical Format: 1/2.8"

Imaging Sensor: IMX291

Effective Pixels: 2MP

Accessories: Cable with ADKey 2pin OSD Key

Bottom Group

Description

MODEL	HS771291-TSC(-AI)(-AZ)(-CBOSD)
DSP	EN771T+Sony IMX291 sensor
Image Sensor	1/2.8” Sony IMX291 sensor sensor
Total Pixels	2000(H) × 1241(V)Approx. 2.48M pixels
Effective Pixels	1984(H) × 1105(V)Approx. 2.19M pixels
Scanning System	Progressive
Resolution	Digital:1080p(30fps),720p(60fps)
Min.lllumination	Color:0.01 lux ,BW: 0.001 lux , Color:DSS:0.017 lux ,BW DSS: 0.0008 lux
Video Output	TVI, HD‐SDI, Analog: NTSC/PAL(Switch by OSD) CVBS
S/N Ratio	More than 50Db(AGC off)
WDR	HD-SDI/EX-SDI WDR ≥120db
AEC/DWDR	CVBS DWDR ≥120db
Lens	DC (-AZ Supports 2.8-8mm, 2.8-12mm, 6-22mm Lens) / Manual (-AI Supports Auto Iris Lens)
Brightness	0-20
AGC	0-20 steps
Sens up	1x-32x
Shutter Speed	AUTO / MANUAL(1/50\60 ~ 1/30,000 sec)
Digital Slow Shutter	Off/On(x4)
Defgo	Off/On
Shading	Off/On
BLC	Off/BLC
HLC	Off/Hlc
Day&Night	Auto / Color / B&W
White Balance	Auto / Auto ext / Pushing / Manual
Focus ADJ	OFF / ON
MONITOR	0/1/2/3
DNR(Dight Noise Reduction)	Off / Low / Middle / High
Mirror	Off/On
H‐V‐REV	Off/On
Sharpness	0-10 steps
Digital Zoom	X1-X10
Motion	Off/on
Privacy Mask	32 Masks
Language	Chinese / English polyglot
Power(Max.) supply	DC12V ±10%<1.50W

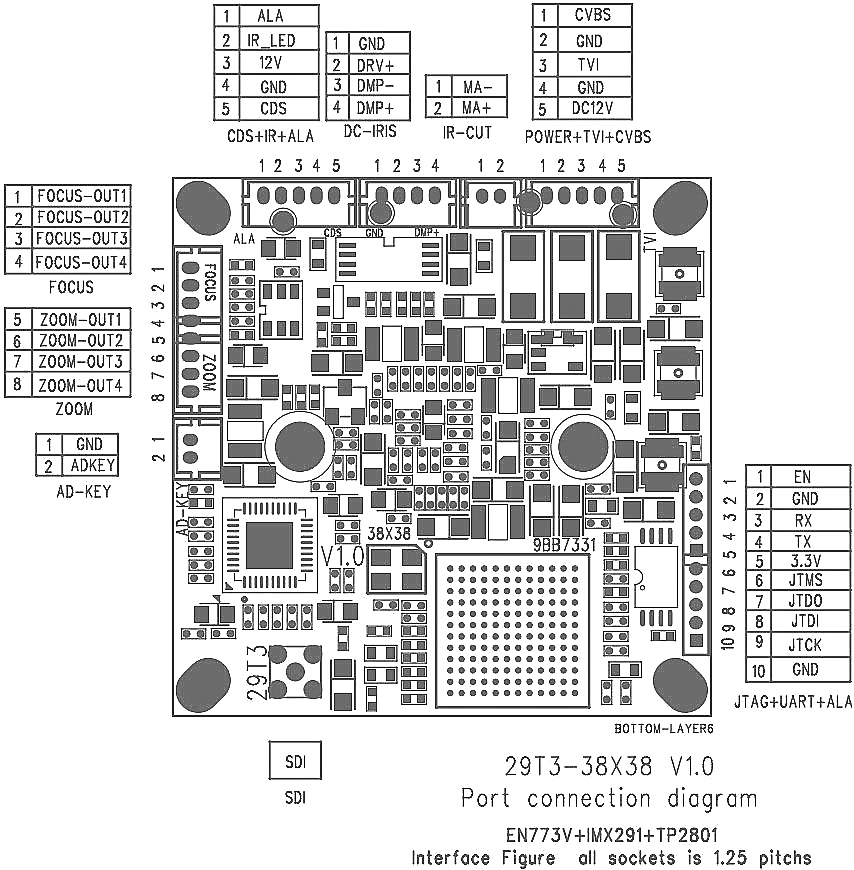

Video Output	HD-SDI/EX-SDI: SMA connector, TVI: BNC connector CVBS: BNC connector
HD-SDI distance	SDI Line(ND5C‐2V 75Ohm) 500m
SIZE	38mm*38mm
Weight	10g

[Note] this board support ADKEY osd cable, please choose camera baord kit with OSD cable.

FAQ

What is ADKEY technology?

ADKEY OSD keyboard use 2 wire other than 6 wires offers 5 key include Up Down Left Right and Confim.

When diffenent key press down there will be different resistance between the 2 wire. DSP/Microcontroller detect which key is pressed according to the resitance difference.

What is HD-SDI, EX-SDI?

SDI - Serial Digital Interface, is a uncompressed video format. So there is no need extra time to encode and decode. It is realtime transmission.

HD-SDI - High Definition Serial Digital Interface - is the first HD analog standard, and it uses coax cable to send video in a digital uncompressed format. Transmit video up to 150m (500ft) over 75-3 coax cable.

EX-SDI enhanced SDI technology, can transmit loseless video up to 500m (1600ft) over 75-3 coax cable.

SDI offers better image quality than AHD.

SDI is widely used in film, television, medical, industrial control and other fields.
