1/2.7" OV2710 2MP 1080P Dual Sensor 30fps USB2.0 USB UVC Camera board YUY2 MJPEG-tmp

Empty

Total: $0.00

Hupuu Electronics

SKU:

UCB-2D2710SM

Category: Camera Board USB UVC Camera Module

$81.00

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $64.00 - $81.00

Description

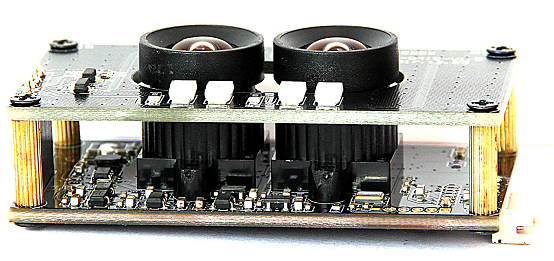

2 Megapixel 1080P HD High Frame Rate USB Camera 30fps, Dual 1/2.7 OV2710 Sensitive Film

Using 1/2.7 OV2710 CMOS Sensor
Has a good low light effect;
320x240, 640x480, 1280x720, 1920x1080;
Mainly used for Android advertising, video conferencing, high-definition monitoring, refrigerators and other fields.

Sensor	Dual OV2710( one for color, the other for B&W)
MAX effective pixels	1920 x 1080
Sensor Size	1/2.7 inch
Pixel Size	3.0μm x 3.0μm
Image area	3888μm x 2430μm
Output parameters	video format	Max Rosolution	Frame rate
	YUY2/MJPEG	1080P	30fps
input clock frequency	6~27MHz
Max S/N ratio	39 dB
dynamic range	69dB @8X gain
Dark Current	20mV/s @60°C junction temperature
Interface type	USB2.0
Adjustable parameter	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure
audio frequency	None
power	USB BUS POWER
Voltage	DC 5V
Electric current	Max 500mA
Main chip	DSP/SENSOR/FLASH
AEC	Support
AEB	Support
AGC	Support
PCBA Size	53*29mm
Storage temperature	-20°C to 70°C
working temperature	0°C to 55°C
USB Wire rod	Customized
System support	WinXP/Vista/Win7/Win8/Win10 Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later
Lens	Image Format	1/2.5"
	TTL	22mm
	Construction	2G2P+IR
	FOV	80°
	Thread Size	M12*P0.5mm
	Focus	Fixed

Shipping

Quantity:

Ship to:

Remark:
For orders with a high total amount, please choose DHL, EMS other than Airmail, ePacket.
