Description

UCB2131-FC 2MP 1/2.7" HM2131 USB 2.0 camera module UVC MJPG 30FPS PCBA YUY2

Product number	UCB2131-FC
Sensor	HiMax HM2131
MAX effective pixels	1920 * 1080
Sensor Size	1/2.7 inch
Pixel Size	3μm x 3μm
Dark Current	20mV/s @60°C
Sensitivity	4600mV/(Lux-sec)
Output parameters	Video format	Rosolution	Max Frame rate
	MJPG/YUY2	800x600	30fps
	MJPG/YUY2	720P 1280x720	30fps (Can up to 100fps)
	MJPG/YUY2	2MP 1920x1080	30fps (Can up to 60fps)
focusing	Fixed / Manual
max S/N ratio	38.9dB
dynamic range	62dB
Interface type	USB2.0
Adjustable parameter	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure
audio frequency	Optional
power	USB BUS POWER
Voltage	DC 5V
Working Current	<200mA
Sleep mode Current	<10mA
Main chip	DSP/SENSOR/FLASH
AEC	Support
AEB	Support
AGC	Support

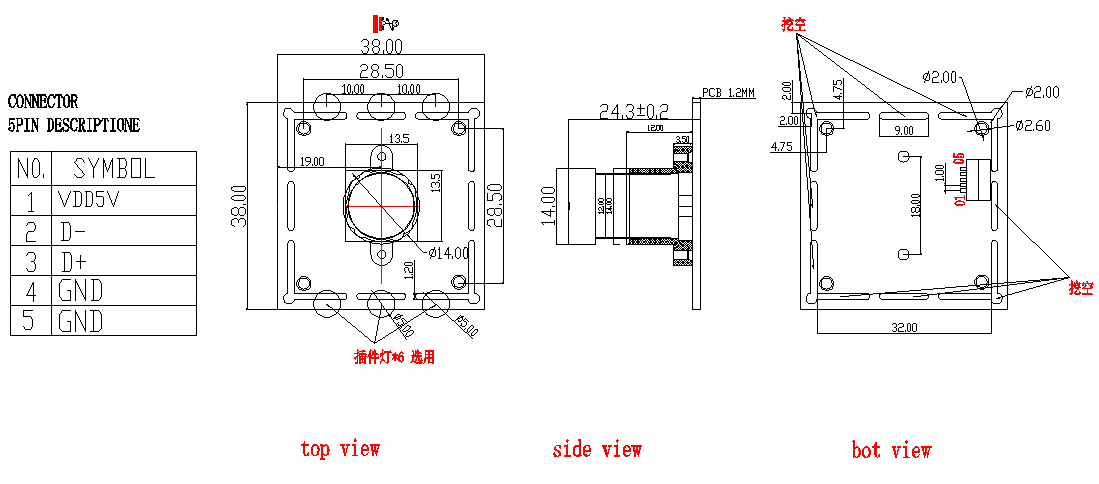

PCBA Size	Customized
Storage temperature	-20°C to 70°C
working temperature	0°C to 50°C
USB Wire rod	Customized
System support	WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
Lens	Lens Construction	3G2P+IR
	F/NO	F2.5
	EFL	4.16mm
	BFL	3.4mm
	FOV	80°
	TV Distortion	<1.2%
	Relative ilumination	50%
	IR Filter	650±10nm
