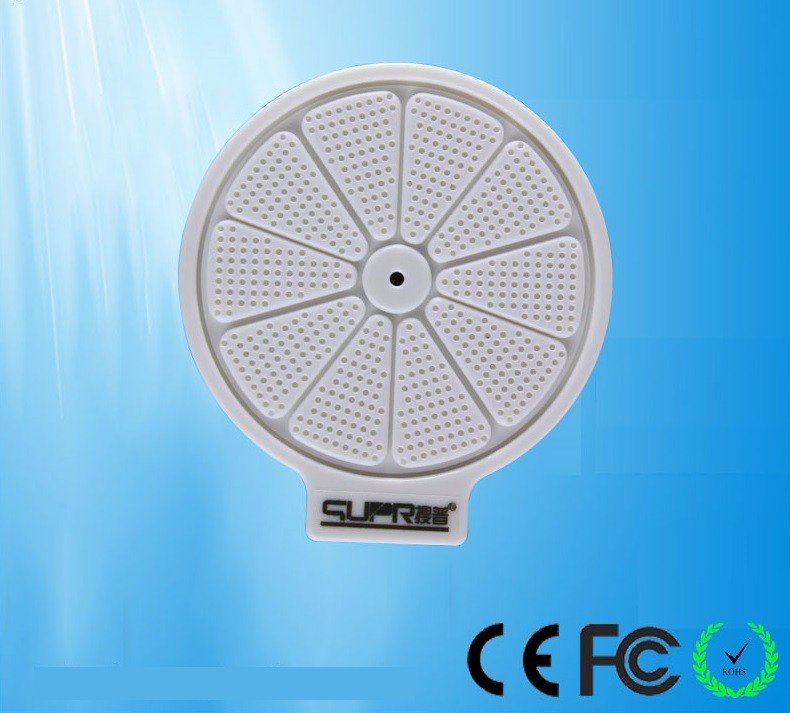

SUPR-104 acoustic sound monitor For CCTV Microphone

SKU:

HAM-SUPR-104

Category: Microphone

$12.31

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $10.05 - $12.31

Bottom Group

Description

Packing list:

1 x SUPR-104 acoustic sound monitor For CCTV Microphone(not include power supply interface and audio interface)

--------------------------------------------------------------------------------------------------------------

Description

Imported high fidelity low noise processing chip and special mini microphone

Built-in automatic gain control circuit(AGC), clear voice, low noise

Low price and can be widely used.

Monitor range: 10-100 square meters.

Apply to Banks, telecommunications, charge under the environment of the counter.

Parameter

Voltage: linear power supply (transformer) DC 9-12V

Electric current: 20mA

Frequency range: 100-100K Hz

Output impedance: 600 ohm non equilibrium

Connecting mode:

red (power +)

black (public)

white (audio +)

Apply to HIKVISION, dahua, hanbang and other video recorder
