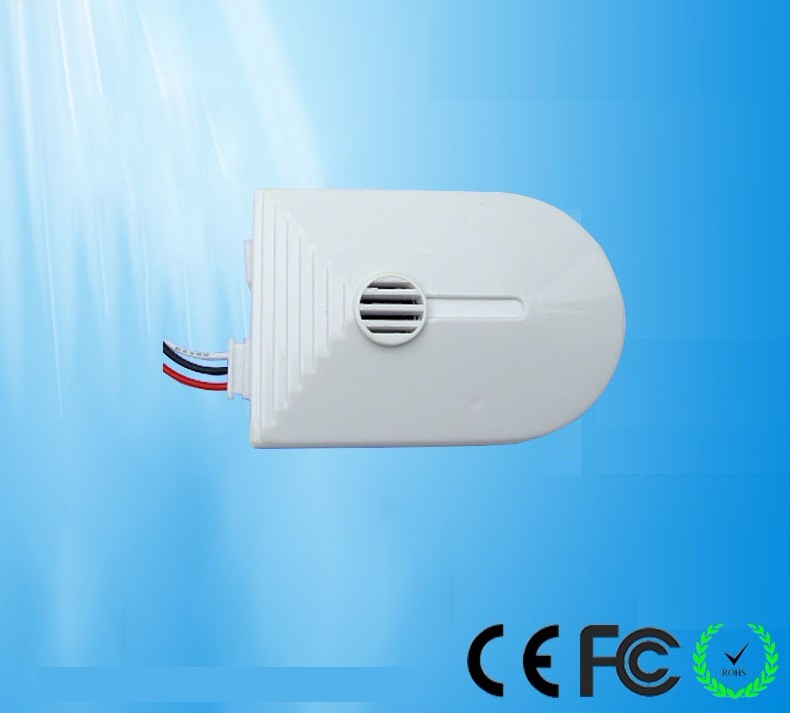

HAM-01 high-sensitivity sound monitor For CCTV Microphone

SKU:

HAM-01

Category: Microphone

$3.71

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $2.75 - $3.71

Bottom Group

Description

Packing list:

1 x HAM-01 high-sensitivity sound monitor For CCTV Microphone

(not include power supply interface and audio interface)

--------------------------------------------------------------------------------------------------------------

Description

Using high-fidelity / low noise processing chips, voice clear, low noise, appearance fashion, suit for various occasions.

Operating-voltage: 6-12VDC

Frequency response: 100-100K Hz

The adjustable sensitivity,

Monitoring range: 100 square meters.

Parameter

Voltage: linear power supply (transformer) DC 9-12V

Electric current: 20 mA

Frequency range: 100-100K Hz

Output impedance: 600 ohm non equilibrium

Connecting mode:

red (power +)

black (GND)

white (audio +)

Apply to video recorders such as HIKVISION, dahua, hanbang.
