3MP High Resolution Design,  Apply to 720P and 1080P Camera.Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Model:					LF6-CS-3MP-F2-IR
Resolution					3 Megapixel
Image format					1/2.5"
Focal length					6mm
Aperture					F2.0
Mount					CS
Field Angle DxHxV(°)				" °	1/2.5		1/3		1/4
				D	116		99.3		69
				H	84.6		74		53.5
				V	60		53.5		39
Optical Distortion					15.10%		12.30%		8.30%
M.O.D.					0.3m
Dimension					Φ28x32.2mm
Weight					40±2g
Flange BFL					12.5mm
BFL					7.5mm
MBF					6.4mm
IR Correction					Yes
Operation				Iris			FIX
				Focus			/
				Zoom			/
Operating temperature							-20°C~+60°C

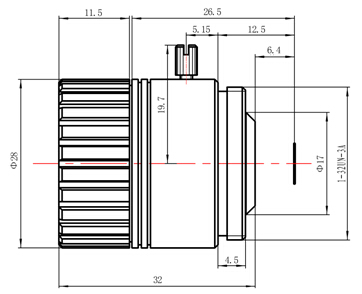

Size
Size tolerance(mm):			0-10±0.05			10-30±0.10			30-120±0.20
Angle tolerance					±2°
