3MP High Resolution Design,  Apply to 720P and 1080P Camera.

Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Applying to Traffic Monitoring, Toll Gate Capturing and General Monitoring

Model:					LF418-C-3MP-F1.6-IR-M
Parameter of Lens
Pixel					3MP
Image format					1/1.8″
Focal length					4-18mm
Aperture					F1.6
Mount					C
Field angle DxHxV(°)		1/1.8"			137°x110°x82°~31°x25°x19°
		1/3"			85.5°x69°x52°~21°x17°x13°
M.O.D.					0.3m
Dimension					Φ49.5x73.7mm
Weight					240g
Back focal length					7.9mm
Operation		Iris			Manual
		Focus			Manual
		Zoom			Manual
Operating temperature					-20°C~+60°C

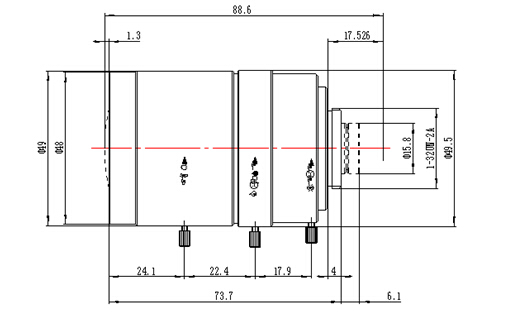

Size
Size tolerance(mm):		0-10±0.05		10-30±0.10		30-120±0.20
Angle tolerance					±2°
