3MP High Resolution Design,  Apply to 720P and 1080P Camera.

Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Applying to Traffic Monitoring, Toll Gate Capturing and General Monitoring

Model:					LF418-C-3MP-F1.6-IR
Parameter of Lens
Pixel					3MP
Image format					1/1.8″
Focal length					4-18mm
Aperture					F1.6
Mount					C
Field Angle D×H×V(°)				" °	1/1.8		1/2		1/3
					4mm	18mm	4mm	18mm	4mm	18mm
				D	137	31	120	29	85.5	21
				H	110	25	92	23	69	17
				V	80	19	67	17.2	52	13
Optical Distortion					-57.5%~-2.7%		-46.5%~-2.2%		-24.8%~-1.2%
M.O.D.					0.3m
Dimension					Φ52×79.1mm
Weight					207.3g
Flange Back focal length					17.526mm
Back focal length					8~20mm
Back focal length					7.9~11.1mm
IR Correction					Yes
Operation		Iris			DC
		Focus			Manual
		Zoom			Manual
Operating temperature					-20°C~+60°C

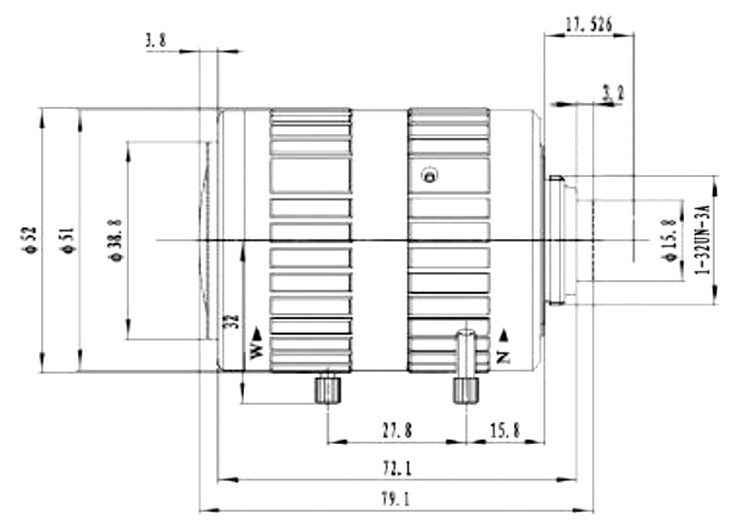

Size
Size tolerance(mm):		0-10±0.05		10-30±0.10		30-120±0.20
Angle tolerance					±2°
