LF3.24-M12-13MP-F2.7 3.24mm 1/2.5" M12 Mount 13MP Camera Lens

LF2.9-M12-5MP-F1.6 F1.6 2.9mm 1/2.9" M12 Mount 132degree DFOV Fixed Security CCTV Camera Lens

LF3.24-M12-13MP-F2.7 3.24mm 1/2.5" M12 Mount 13MP Camera Lens

SKU:

LF3.24-M12-13MP-F2.7

Category: Lens

$8.80

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $7.20 - $8.80

Sensor Optical Format: 1/2.5"

Effective Pixels: 3MP

Aperture: F2.7

Focal Length: 4mm

Mount: M12

Bottom Group

Description

Model		LF3.24-M12-13MP-F2.7
Resolution		13 Megapixel
Image format		1/2.5" (IMX317)
Focal length		3.24mm
Aperture		F2.7
Mount		M12
Field Angle D×H×V(°)		1/2.5" (16:9)
	D	94.5°
	H	87°
	V	57°
TV Distortion		<0.5%
Relative Illumination		>70%
Chief Ray Angle		<12.6°
Structure		4G + 2P + IR-cut
MBF		3.95mm
TTL		22.5mm
Operation	Iris	Fixed
	Focus	/
	Zoom	/
Operating temperature		-30°C~+70°C

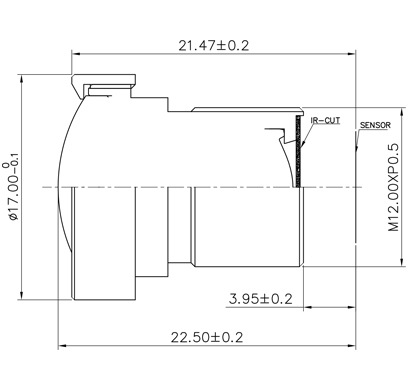

Size

FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.
