LF2.9-M12-5MP-F1.6 F1.6 2.9mm 1/2.9" M12 Mount 132degree DFOV Fixed Security CCTV Camera Lens

SKU:

LF2.9-M12-5MP-F1.6

Category: Lens Monofocal Lens M12 5MP Lens

$6.80

Need parts to be Assembled for free? Please contact us, or leave message when checkout.

For batch orders please contact us.

Price: $5.20 - $6.80

Sensor Optical Format: 1/2.9"

Effective Pixels: 3MP

Aperture: F1.6

Focal Length: 4mm

Mount: M12

Bottom Group

Description

Model		LF2.9-M12-5MP-F1.6
Resolution		5Megapixel
Image format		1/2.9"
Focal length		2.9mm
Aperture		F1.6
Mount		M12
Field Angle D×H×V(°)		1/2.9 (16:9)
	D	132°
	H	111°
	V	59°
Optical Distortion		<19%
Relative Illumination		>88%
Chief Ray Angle		<10°
Structure		6G + IR-cut
MBF		4.38mm
TTL		23.92mm
Operation	Iris	Fixed
	Focus	/
	Zoom	/
Operating temperature		-40°C~+85°C

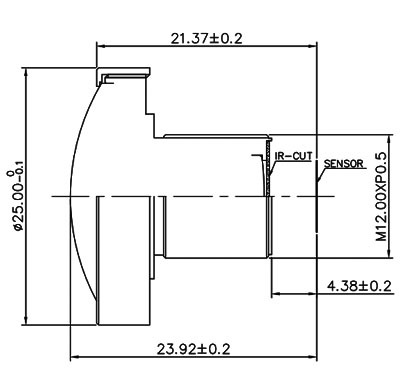

Size

FAQ

1. How to choose the FOV?

By default the FOV in specifications H:V is 4:3, if you use 16:9 sensor the FOV(H) will be wider, and FOV(V) will be smaller.

2. There are 1/1.8" 1/2" 1/2.5" 1/2.7" 1/3", Which one meets my needs?

The image format depends on the sensor format. The image format of lens should be equal or larger than the sensor format, otherwise there will be black area or corner.
