3MP High Resolution Design,  Apply to 720P and 1080P Camera.

Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Model:					LF2812-M12-3MP-F1.4-ICR
Parameter of Lens
Pixel					3MP
Image Format					1/2.7"
Focal Length					2.8~12mm
Aperture					F1.4
Mount					M12/Φ14
Field Angle DxHxV(°)		1/2.7"			136x108.8x81.6~39x31.2x23.4
		1/3"			122x97.6x73.2~ 36x28.8x21.6
M.O.D					0.3m
Dimension					Φ28x41.7mm
Weight					35g
Back Focal Length					6mm
Operation		Iris			Fix + IRCUT
		Focus			Manual
		Zoom			Manual
Operating temperature					-20°C~+60°C

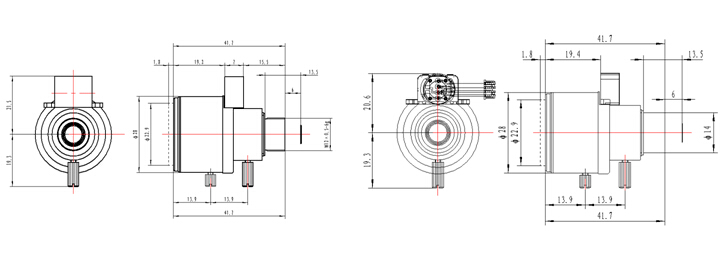

Size
Size tolerance(mm):		0-10±0.05		10-30±0.10		30-120±0.20
Angle tolerance					±2°
