3MP High Resolution Design,  Apply to 720P and 1080P Camera.

Outstanding Coating Technology, All Lens Elements are with Multi-layer Broadband Coating to Get Best Image.

Model:					LF2812-M12-3MP-F1.4-AI
Parameter of Lens
Pixel					3MP
Image Format					1/2.7″
Focal Length					2.8-12mm
Aperture					F1.4
Mount					M12/Φ14
Field Angle DxHxV(°)		1/2.7"			136°x108.8°x81.6°~ 39°x31.2°x23.4°
		1/3"			122°x97.6°x73.2°~ 36°x28.8°x21.6°
M.O.D.					0.3m
Dimension					Φ28x41.7mm
Weight					35g
Back Focal Length					6mm
Operation		Iris			DC
		Focus			Manual
		Zoom			Manual
Operating temperature					-20°C~+60°C

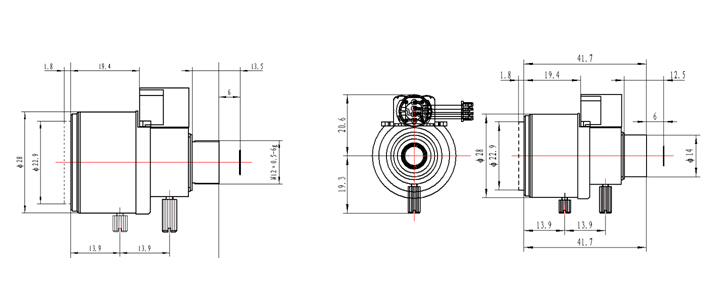

Size
Size tolerance(mm):		0-10±0.05		10-30±0.10		30-120±0.20
Angle tolerance					±2°
